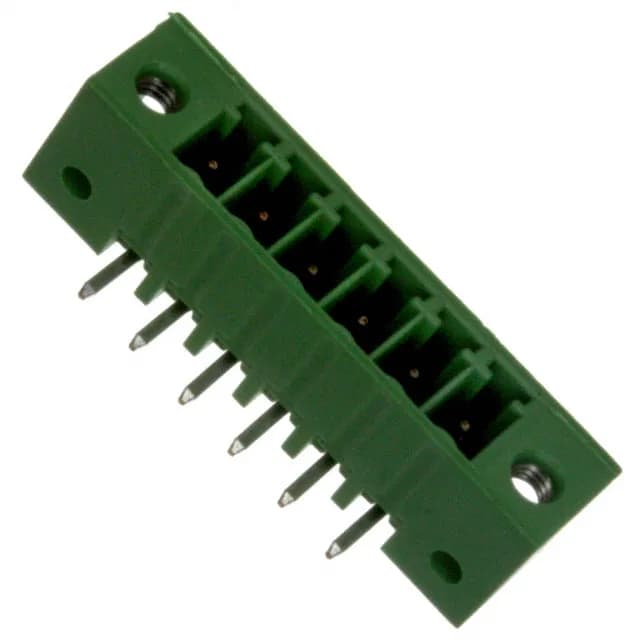

Right-angle 3.5mm header for terminal block mating
Pitch, orientation, and footprint fit
At 0.138" (3.50mm) pitch, the 6 positions fit a compact board layout — the 90° header orientation means the wire entry is parallel to the PCB, useful when the mating plug is a right-angle or vertical type. The shrouded (4 side) design protects the pins from accidental shorting during handling. Contact tail length is 0.134" (3.40mm), and insulation height is 0.285" (7.25mm) — these dimensions matter for through-hole solder joint clearance and for the mated stack height with the matching plug.
Confirm the mating half (a 3.50mm pitch plug or receptacle) and the exact position count before committing the BOM line.
