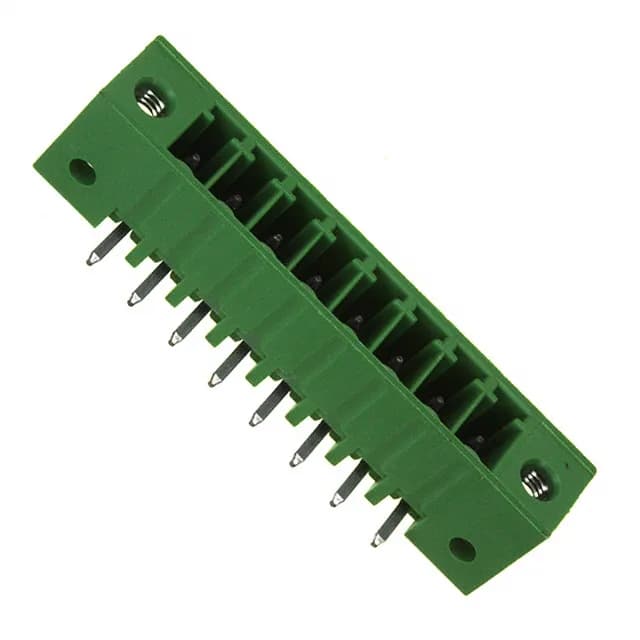

8-circuit right-angle header for terminal block systems
Rated 11 A at 300 V, the header handles typical control-circuit and sensor power loads inside an industrial panel. The mating flange provides a positive lock with the matching plug, keeping the connection secure under vibration.
Pitch, positions, and board footprint
At 3.50mm pitch, the 8-position header occupies a 28mm-wide footprint on the PCB. Single-level layout means all 8 positions are in one row — no stacking or multi-tier complexity.
Peer alternatives in the Buchanan series
If the BOM requires a different position count, the 1-2213934-1 and 1-2305909-1 are direct functional alternatives within the same series, with identical pitch and orientation.
