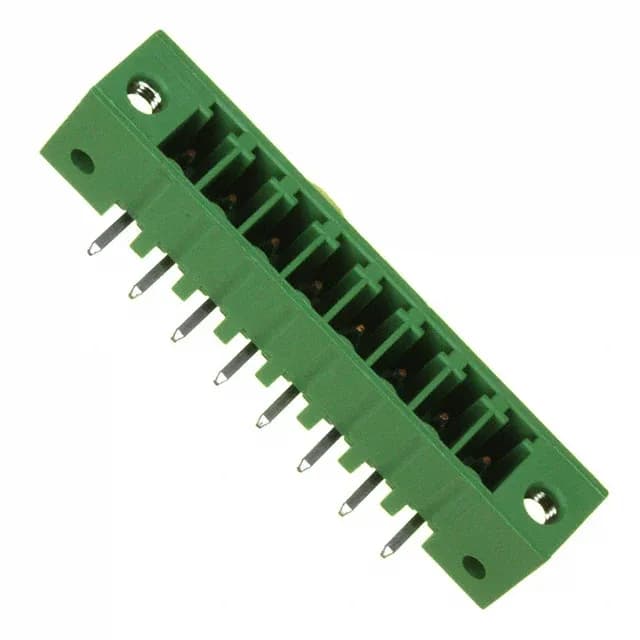

8-Position Right-Angle Header for Terminal Block Systems
The 0.150" (3.81mm) pitch sets the PCB footprint and the per-contact current ceiling — at 11 A the temperature rise stays within the UL94 V-0 polyamide housing rating. Rated 300 V per UL and operating from -40°C to 110°C, this header suits industrial control panels, HVAC equipment, and building automation where the terminal block is the primary field-wiring interface.
ROHS3 Compliant per the lifecycle entry.
Through-hole solder termination with a contact tail length of 0.134" (3.40mm) — the tail protrudes through the PCB and is wave-soldered. The mating flange on the header provides a positive lock with the corresponding plug, reducing the chance of vibration-induced disconnection in industrial environments.
