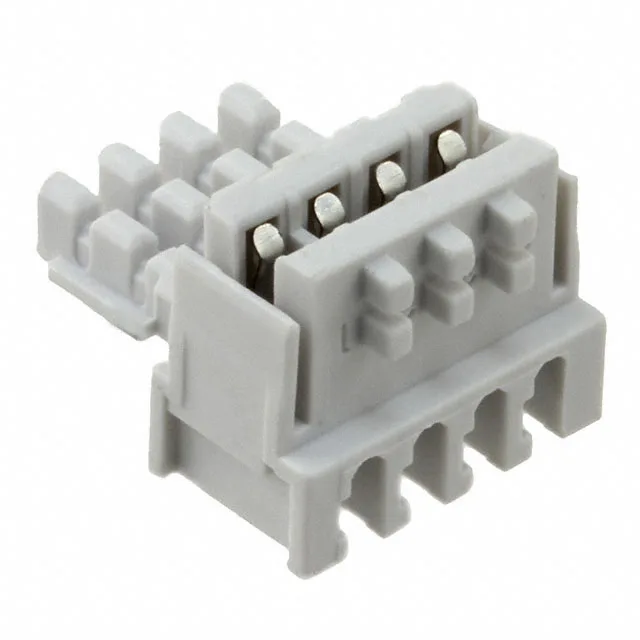

284865-4 DuoPlug Receptacle — IDC Termination for Discrete Wire
The TE DuoPlug 284865-4 is a 4-position, single-row receptacle designed for IDC termination of 22-24 AWG discrete wire. It mates directly to a PCB via the 'Mates to PCB' feature, making it a wire-to-board interconnect for harness assemblies where a soldered header on the board receives the plug.
Wiring and Termination — IDC for 22-24 AWG
This eliminates the need for crimp tooling for each terminal — a single IDC press operation terminates all four positions simultaneously. The wire gauge range is 22-24 AWG discrete, not ribbon cable, so each wire is individually routed and terminated.
Mounting and Orientation — Free-Hanging Right-Angle
The receptacle is free-hanging (in-line) with a right-angle orientation relative to the wire exit. This means the cable exits at 90° to the mating face, which is useful when the wire bundle needs to run parallel to the PCB surface rather than straight out.
Contact Finish and Duty Cycle
Contact finish is tin, not gold. The female blade socket contact type provides a wide wiping surface for reliable initial contact.
The active lifecycle means there is no urgency from a phase-out perspective, but lead times should be verified for your required quantity.
