DuoPlug 284930-6 — 6-Position IDC Receptacle for Wire-to-Board

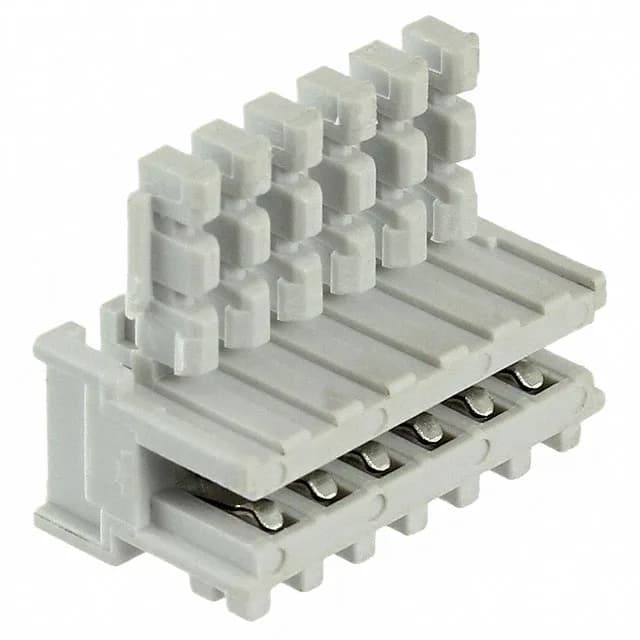

The TE Connectivity DuoPlug 284930-6 is a 6-position single-row IDC receptacle designed for wire-to-board applications. It terminates 22-24 AWG discrete wire via insulation displacement, eliminating the need for crimp tooling on the wire side. The free-hanging housing carries a 'Mates to PCB' feature, confirming this is the wire-side half of a DuoPlug wire-to-board system.
This speeds harness assembly but demands the wire gauge stay within the rated range — 24 AWG is the smallest that reliably displaces insulation, and 22 AWG is the largest that fits the slot without damaging the conductor. A mismatch in wire diameter leaves an open circuit or a partial connection that frets under vibration.
This receptacle mates with a DuoPlug header soldered to a PCB. The 0.098" (2.50mm) pitch on a single row of 6 positions means the header footprint occupies about 0.49" of board edge. The tin contact finish is adequate for a single mate cycle in production — if the assembly requires field disconnect and reconnect, the tin surface will wear and contact resistance will rise after a few cycles.
