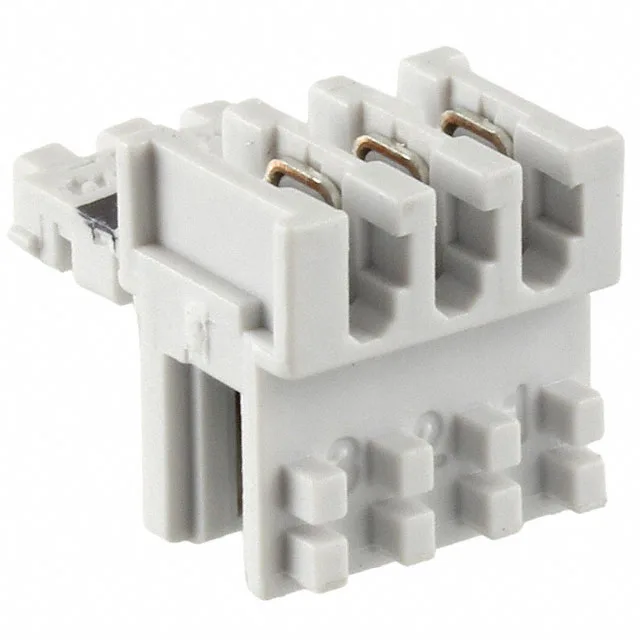

3-Position DuoPlug IDC Receptacle — 0.098" Pitch, Tin Contacts
It accepts 22-24 AWG wire and mates with a male header (typically a 0.098" pitch pin header, not included). The tin-plated female blade socket contacts provide a reliable connection for signal or low-power applications in free-hanging (in-line) harnesses.
This speeds harness assembly, especially for low-volume or field-repair work. The specified wire range is 22-24 AWG; using wire outside that gauge risks poor contact or insulation damage.
Mating Header and Compatibility
This receptacle mates with a male header on the same 0.098" (2.50mm) pitch — typically a TE DuoPlug pin header or a compatible 0.098" pitch header with male blade pins. The connector is free-hanging (in-line), so the header is usually board-mounted. No specific mating header part number is listed in the evidence; confirm the header's pin count and pitch match the receptacle's 3 positions and 0.098" spacing before ordering.
