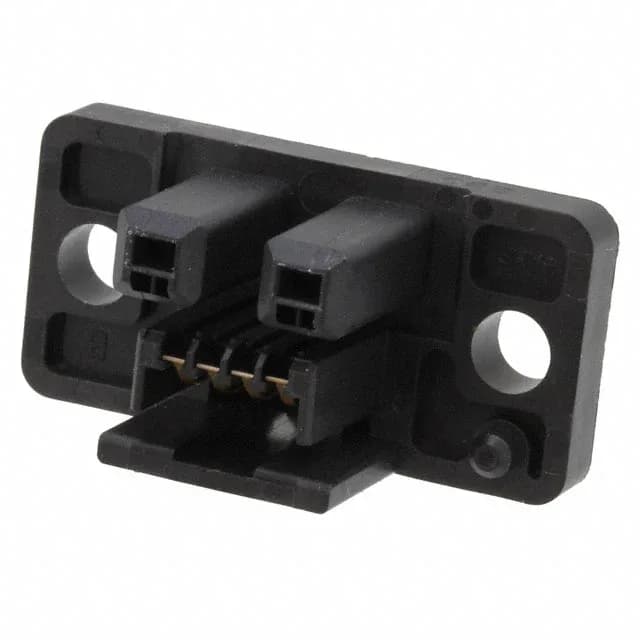

Mini-Drawer Receptacle Housing, 6-Position Mixed Layout
The TE Connectivity 292184-1 is a Mini-Drawer receptacle housing for female sockets, configured as a 6-position mixed-layout connector with 4 signal positions and 2 dedicated power positions across two rows.
Mixed Signal and Power Layout
The 6 (4 + 2 Power) position count is the key selection spec — this is not a uniform 6-contact housing. The two power positions are sized for higher-current terminals, while the four signal positions handle lower-current control or sense lines. For a standard 6-position uniform housing, look at the 292133 series; the 292184-1 is the mixed-layout variant that separates power and signal paths in a single connector body.
Panel Mount and Housing Details
Panel mount means the housing secures through a cutout in the enclosure wall, not soldered to a PCB. The Mini-Drawer style uses a sliding mate interface — the drawer header aligns and engages as the module is inserted, common in power-supply or battery-pack drawer assemblies.
This is a standard practice for drawer-style connectors where the terminal type (wire gauge, plating, current rating) is selected per the application. Confirm the terminal part numbers for the 4 signal and 2 power cavities before committing the BOM.
