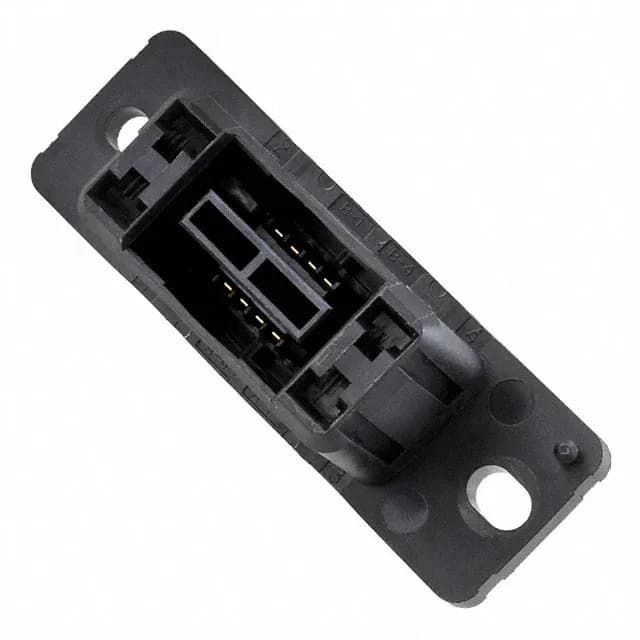

TE Mini-Drawer receptacle, 292185-8, 12 positions (8 loaded), 2 rows, 15 A, 250 V, panel mount, gold contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Mini-Drawer |
| Mounting | Panel Mount |
| Connector type | Mini-Drawer |
| Voltage rating | 250V |
| Current rating | 15A |
| Operating temperature | -30°C ~ 105°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 12 |
| Contact layout, typical | 8 Signal, 4 Power |
The TE 292185-8 is a Mini-Drawer receptacle, panel-mount, with 12 positions in a 2-row housing — 8 of those positions are loaded with gold-plated contacts, leaving 4 cavities open. The contact layout is 8 signal and 4 power, so this is a hybrid interconnect: the signal contacts handle the low-current lines, and the power contacts carry the higher draw.
The 250 V rating gives enough headroom for industrial control circuits.
Yes, it is ROHS3 compliant.
