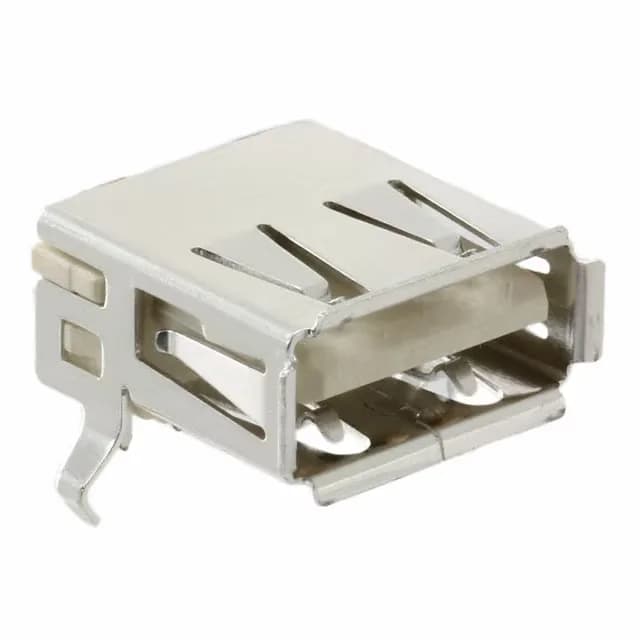

TE Connectivity 292303-5 USB-A Receptacle, 4 Pos, R/A

MPN292303-5
Active

TE Connectivity, USB-A (USB TYPE-A) Receptacle, 292303-5, 4 contacts, 1 port, right-angle through-hole, shielded, board lock, 30 VAC, 1 A per contact, 1500 mating cycles, USB 2.0.

$1.5900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 292303-5 datasheet (PDF)
RoHSRoHS Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

292303-5 key specifications
ParameterValue
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Current rating1A per Contact
Positions4
Mounting featureHorizontal
Operating temperature-55°C~85°C
Insulation colorNatural
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTube

All specifications

292303-5 additional specifications
ParameterValue
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold or Gold-Palladium
SpecificationsUSB 2.0
Number of ports1

Product details

USB Type-A Receptacle for Panel-Mount and Board-Edge Duty

The TE Connectivity 292303-5 is a USB 2.0 Type-A receptacle with 4 contacts in a single port, terminated through-hole and mounted at a right angle to the PCB. Rated for 1 A per contact at 30 VAC, this is a signal-grade interconnect for USB 2.0 data paths, not a high-power charging port.

Mounting and Retention for Repeated Mating

With 1500 mating cycles rated, the gold or gold-palladium contact finish handles frequent connect/disconnect cycles in test fixtures, instrumentation front panels, or field-service equipment without fretting corrosion.

Signal Path and Compliance

The connector is specified for USB 2.0, supporting the 480 Mbps data rate with the shielded shell providing a low-impedance ground path to the PCB. RoHS compliant per the listing.

Frequently asked questions

Where can I buy the TE Connectivity 292303-5 USB receptacle?

Submit a request for quote to confirm current availability and pricing for your BOM quantity.

What does the board lock feature do on the 292303-5?

The board lock consists of barbed retention posts that press into plated through-holes on the PCB. They hold the connector in place during the soldering process and provide mechanical resistance to the shear force from repeated USB cable insertions and removals.
