TE Connectivity AMP Connectors 292303-7

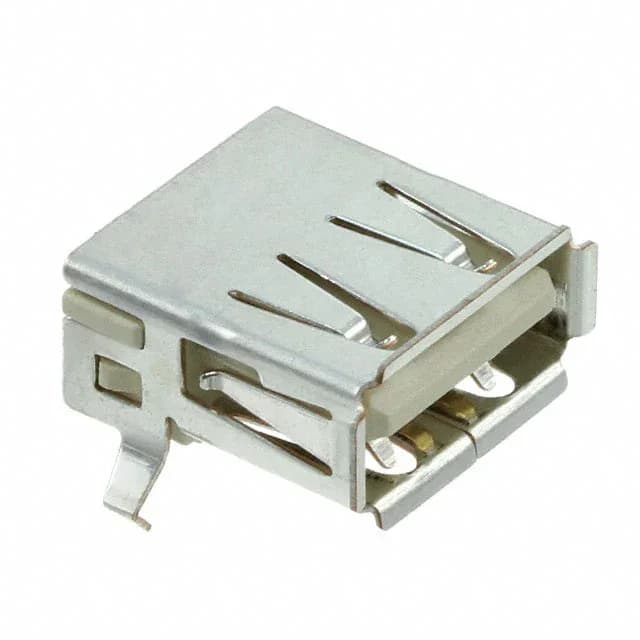

TE Connectivity 292303-7 USB-A Receptacle, USB 2.0

MPN 292303-7
Active

TE Connectivity 292303-7, USB-A (USB TYPE-A) receptacle, USB 2.0, 4 contacts, 1A per contact, 30VAC, SMD right angle, shielded, board lock, 1500 mating cycles.

$2.9000 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

292303-7 key specifications
ParameterValue
MountingSurface Mount, Right Angle; Through Hole
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Current rating1A per Contact
Positions4
Mounting featureHorizontal
Operating temperature-55°C ~ 85°C
Insulation colorNatural
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray

All specifications

292303-7 additional specifications
ParameterValue
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold or Gold-Palladium
SpecificationsUSB 2.0
Number of ports1

Product details

USB-A Receptacle, USB 2.0, 4 Contacts, SMD Right Angle

This 4-contact, single-port connector is terminated via surface mount, right angle, with an additional through-hole option for mechanical stability.

The natural insulation color is standard for unkeyed USB-A receptacles.

MPN
292303-7
