TE Connectivity 292303-9 USB-A Receptacle, SMD RA, 1A

MPN292303-9
Active

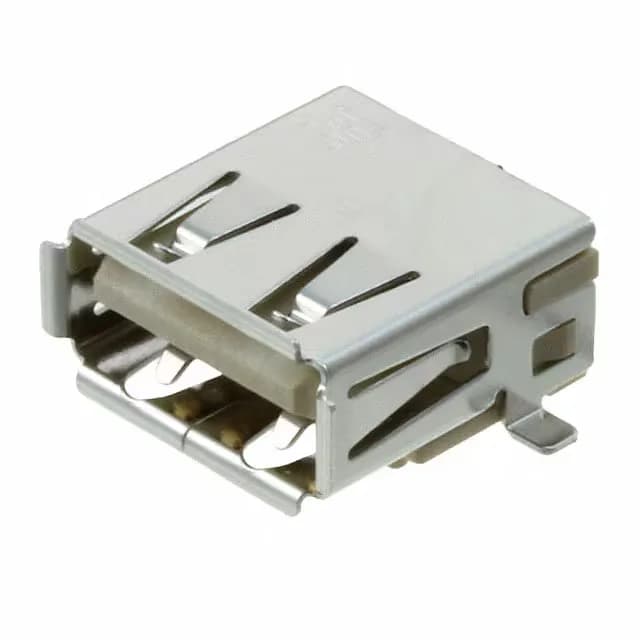

TE Connectivity 292303-9, USB-A (USB TYPE-A) Receptacle, 4 contacts, 1A per contact, 30VAC, SMD Right Angle, Shielded, Tape & Reel.

$2.3383Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 292303-9 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

292303-9 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Current rating1A per Contact
Positions4
Mounting featureHorizontal
Operating temperature-55°C~85°C
Insulation colorNatural
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)

All specifications

292303-9 additional specifications
ParameterValue
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold or Gold-Palladium
SpecificationsUSB 2.0
Number of ports1

Product details

It mates with any standard USB Type-A plug, making it the go-to connector for downstream ports on host boards, hubs, and embedded systems that need a reliable USB 2.0 interface. The 1 A per contact current rating covers standard USB power delivery for peripherals, while the 30 VAC rating provides adequate isolation headroom for the signal pair. The shielded steel/stainless shell provides both EMI containment for the differential data lines and mechanical robustness against plug insertion forces.

The 292303-9 is a single-port USB 2.0 Type-A receptacle. The 4-contact pinout carries the standard VBUS, D+, D-, and GND lines, matching the legacy USB pin assignment.

Frequently asked questions

Where can I buy the 292303-9 USB connector?

Submit a request for quote (RFQ) for current availability and pricing — stock and lead time are confirmed at quote time.

Is the 292303-9 compatible with USB 3.0?

No, the 292303-9 is specified for USB 2.0 only. It uses the standard 4-contact Type-A pinout (VBUS, D-, D+, GND) and does not include the additional SuperSpeed contacts required for USB 3.0 operation.

What is the mating cycle life of the 292303-9?

The 292303-9 is rated for 1500 mating cycles. This is a high cycle count for a USB connector, making it suitable for front-panel ports and test equipment that see frequent plugging and unplugging.
