Board-Mount USB-B Receptacle for USB 2.0
The TE Connectivity 292304-1 is a USB-B (USB TYPE-B) receptacle, part of the standard USB 2.0 interface family. It provides 4 contacts in a single port, rated at 1A per contact and 30VAC.

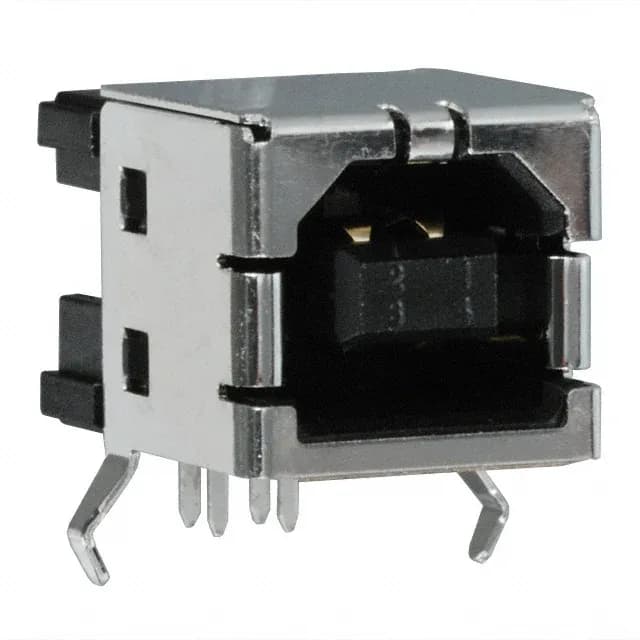

TE 292304-1 USB-B Receptacle, 4 Pos, R/A, Shielded
MPN292304-1
Active
TE Connectivity 292304-1 USB-B receptacle, USB 2.0, 4 contacts, 1A per contact, 30VAC, through-hole right-angle, shielded, board lock, tray.
$2.1900Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | USB-B (USB TYPE-B) |
| Voltage - rated | 30VAC |
| Current rating | 1A per Contact |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -55°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold or Gold-Palladium |
| Specifications | USB 2.0 |
| Number of ports | 1 |
Product details
Frequently asked questions
Is the 292304-1 RoHS compliant?
Yes, the 292304-1 is RoHS compliant.
What mating connector goes with the 292304-1?
The 292304-1 mates with any standard USB Type-B plug, such as the TE 292303 series or equivalent USB-B cable-mount plugs. The shielded shell and board lock ensure a secure, EMI-protected connection.
