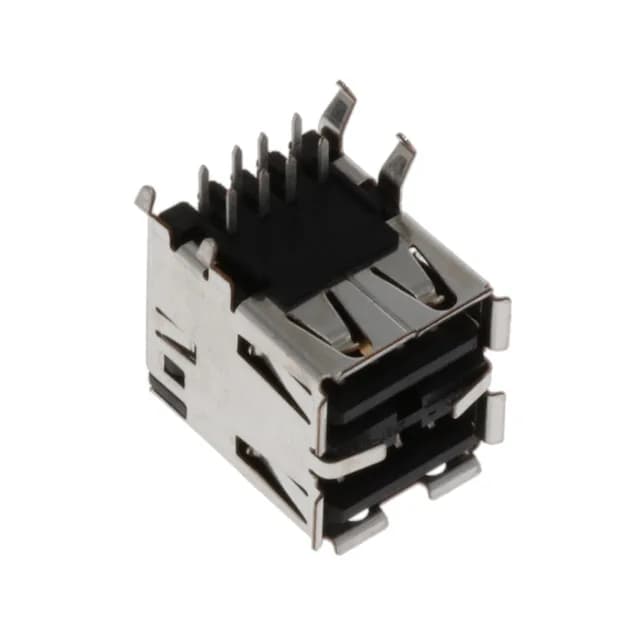

TE Connectivity 292323-6, USB-A (USB TYPE-A) stacked receptacle, 8 contacts (2 ports), USB 2.0, right-angle through-hole, shielded, board lock, 1 A per contact, 30 VAC, 1500 mating cycles, ROHS3.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A), Stacked |
| Voltage - rated | 30VAC |
| Current rating | 1A per Contact |
| Positions | 8 |
| Mounting feature | Horizontal |
| Operating temperature | -55°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold or Gold-Palladium |
| Specifications | USB 2.0 |
| Number of ports | 2 |
The TE Connectivity 292323-6 is a stacked USB-A (USB TYPE-A) receptacle carrying two USB 2.0 ports in a single right-angle through-hole package. Eight contacts total — four per port — with the standard USB 2.0 pinout (VBUS, D-, D+, GND) on each stack position.
Rated for 1500 mating cycles.
Yes, the 292323-6 is ROHS3 compliant, covering the full EU RoHS directive without exemptions.
The 292323-6 is a USB 2.0 Type-A receptacle with 8 contacts arranged as two stacked ports. Each port follows the standard USB 2.0 pinout: VBUS, D-, D+, and GND.
The 292323-6 is rated for 1500 mating cycles, supported by gold or gold-palladium contact plating.
