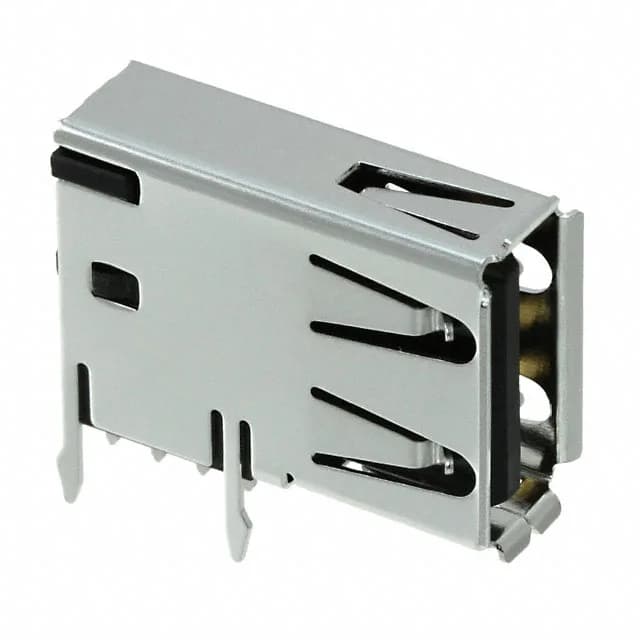

With 4 contacts (VBUS, D-, D+, GND) in a shielded copper alloy shell, it mates with any standard USB-A plug.
Rated 1 A per contact, the 292336-1 delivers the standard USB 2.0 power budget — enough for bus-powered peripherals and basic charging, but not for high-current fast-charging protocols that demand 2-3 A or more. The 30VAC voltage rating covers the USB bus voltage (5 V nominal) with ample margin. The 1500 mating cycles, enabled by the gold contact finish, suit applications like a desktop PC rear panel or a test equipment port; a frequently cycled front-panel port on a consumer device may exceed this count over its life.
Through-hole solder termination with a right-angle orientation. This is a deliberate layout choice — it saves z-height compared to a vertical receptacle and keeps the cable run flat against the enclosure wall. The four solder tails plus the shell's through-hole ground legs provide mechanical retention; no board lock or additional hold-down is present, so the solder joints carry the insertion/extraction forces.
Listed as Active in production, with ROHS3 compliance.
