TE Connectivity AMP Connectors 293722-1 — LED Lighting Connectors

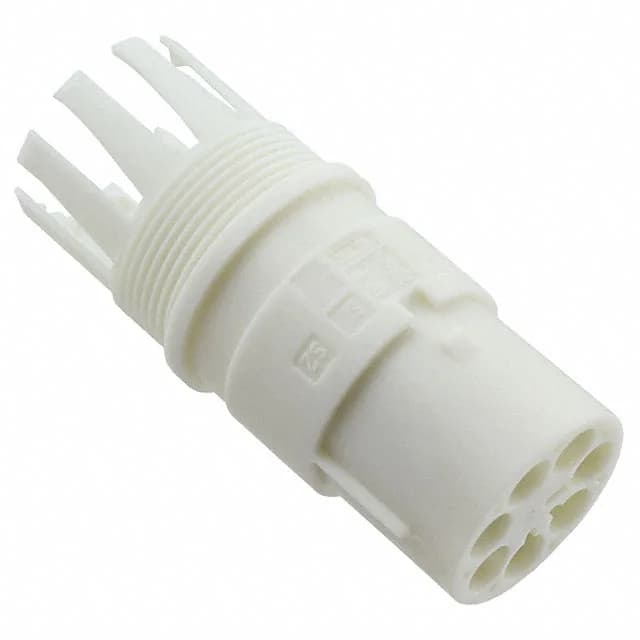

TE Connectivity 293722-1 Nector M Receptacle Housing, 7 Pos

MPN293722-1
Active

TE Connectivity Nector M 293722-1, 7-position receptacle housing for pin contacts, crimp termination, free-hanging, 20 A, 400 V, IP20, keyed, natural PA66.

$1.0300Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

293722-1 specifications
ParameterValue
SeriesNector M
MountingFree Hanging (In-Line)
Connector typeReceptacle Housing for Pin Contact
Voltage rating400V
Current rating20A
IP ratingIP20
Operating temperature-40°C ~ 85°C
Housing colorNatural
Housing materialPolyamide (PA), Nylon, Glass Filled
StyleCable/Wire to Cable/Wire or Board
PackageBulk
FeaturesKeyed
TerminationCrimp
Positions7

Product details

The IP20 rating means this housing is intended for dry, indoor environments — inside an enclosure or junction box, not for washdown or outdoor exposure. The housing is keyed, so the matching plug must carry the complementary keyway to mate; this prevents accidental cross-mating with adjacent connectors of the same series.

The free-hanging mount gives flexibility in harness routing, but the housing has no panel-mount flange or latch, so strain relief must come from the cable bundle itself or a separate tie-down.

Frequently asked questions

What contacts fit 293722-1?

The 293722-1 is a receptacle housing designed for crimp pin contacts in the Nector M series. The specific contact part numbers are not listed in the available spec data — confirm the terminal selection from the TE product drawing or series catalog before ordering.

Is 293722-1 keyed?

Yes, the housing includes a keying feature to prevent mis-mating with non-complementary plugs.
