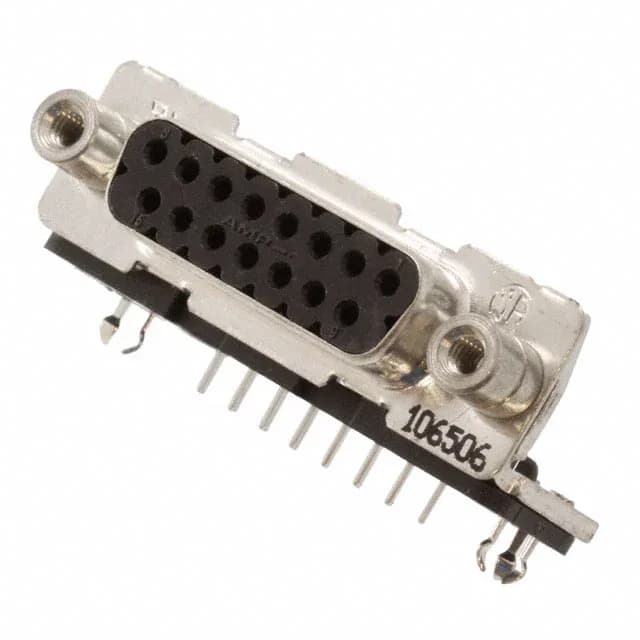

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 15 positions, 2 rows, right-angle solder termination, 30.0µin gold contacts, 6A, 125V, panel mount with board locks.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Polyester, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2 |
| Backset spacing | 0.406\" (10.30mm) |
| Positions | 15 |
| Contact finish thickness | 30.0µin (0.76µm) |
At 15 positions across two rows, the connector fits the DA-15 shell size, and the current capacity is adequate for signal-level loads or moderate power distribution within the connector's voltage ceiling. The right-angle orientation and board locks together mean the connector can be wave-soldered in a single pass and the locks hold it in place during handling before soldering.
Yes — the connector includes a Mating Side, Female Screwlock (4-40) flange feature and board locks on the mounting flanges for PCB retention.
The mounting type is Panel Mount, Through Hole, Right Angle — the connector is soldered to the PCB and the flange screws to the panel.
