TE Connectivity AMP Connectors 3-106507-2 — D-Sub Cable Assemblies

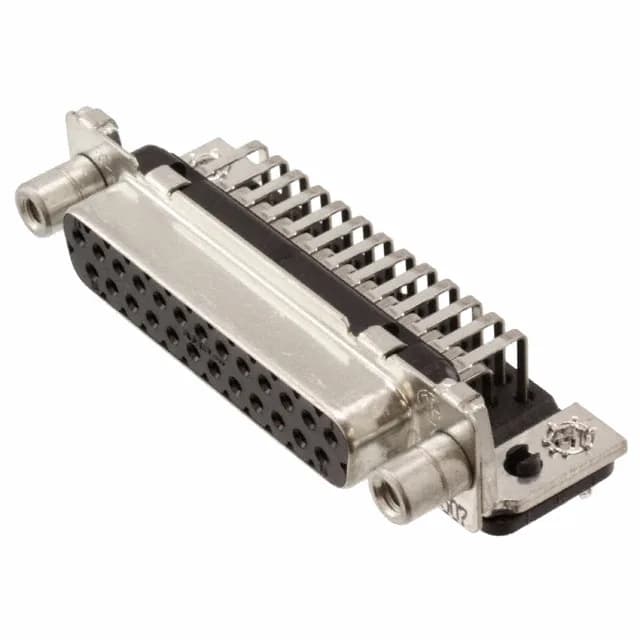

TE Connectivity 3-106507-2 AMPLIMITE HD-20 D-Sub Receptacle

MPN3-106507-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 25 positions, 2 rows, right-angle solder termination, 6A, 125V, gold-plated contacts, board locks, UL94 V-0, black.

$8.0300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-106507-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-106507-2 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingPanel Mount, Through Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester, Glass Filled
Shell material, finishSteel, Tin Plated

All specifications

3-106507-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageBulk
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.406\" (10.30mm)
Positions25
Contact finish thickness30.0µin (0.76µm)

Product details

25-Position Right-Angle D-Sub with Board Locks

The TE Connectivity 3-106507-2 is a 25-position D-Sub receptacle from the AMPLIMITE HD-20 series, configured as a right-angle PCB-mount with integrated board locks. The 25-position shell layout (DB-25) is the standard-density format for parallel-port, serial, and industrial I/O interfaces. The steel shell with tin plating provides EMI shielding when mated with a conductive backshell.

Termination is through-hole solder to the PCB. The backset spacing of 0.406" (10.30 mm) sets the distance from the PCB surface to the mounting flange, which determines the panel cutout depth and the screwlock reach. The flange features female screwlocks on the mating side, threaded 4-40 UNC. The shell size is 3 (DB, B), which is the standard DB-25 footprint; the panel cutout and hole pattern match every other DB-25 connector.

Frequently asked questions

Where can I buy 3-106507-2?

Submit a request for current availability and pricing — confirmed at quote time.

What is the mating connector for 3-106507-2?

The mating connector is a standard DB-25 D-Sub plug (male) with male 4-40 jackscrews. Any TE AMPLIMITE HD-20 or equivalent DB-25 male connector with the same screwlock interface will mate with this receptacle.

Does 3-106507-2 have board locks?

Yes, the 3-106507-2 includes board locks that anchor the connector to the PCB during soldering and resist shear forces from the cable assembly.

Is 3-106507-2 RoHS compliant?

Yes, the 3-106507-2 is ROHS3 compliant.
