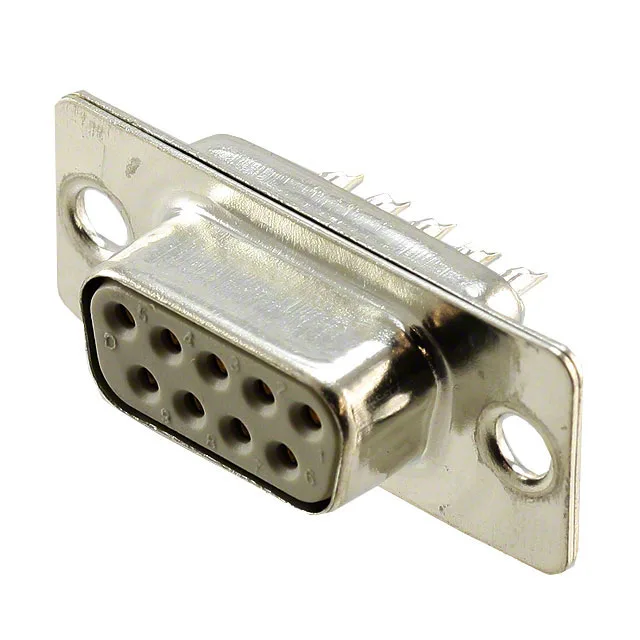

TE Connectivity AMPLIMITE HD-20, D-Sub receptacle, 9 positions, 2 rows, solder cup termination, free-hanging, gold-plated contacts, 3 A, UL94 V-0, gray shell.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Current rating | 3A |
| Contact form | Stamped |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 125°C |
| Color | Gray |
| Contact material | Phosphor Bronze |
| Dielectric material | Polybutylene Terephthalate (PBT), Polyester |
| Shell material, finish | Steel, Tin Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | 8.00µin (0.203µm) |
The unthreaded housing/shell flange means it's not meant for direct panel-mount with jackscrews — you'll need a separate bracket or a mating plug with a threaded shell if you want a rigid panel fix.
The gold plating thickness of 8.00 µ" is a flash coat; it'll hold up to a few hundred cycles in a clean environment but will wear faster in dusty or corrosive conditions. The steel shell with tin plating gives reasonable EMI shielding for a non-filtered D-sub.
The 3-1393480-8 and 8-1437045-3 are the same AMPLIMITE HD-20 9-position D-sub receptacle with identical specs. The difference is packaging: 3-1393480-8 ships in a Box, 8-1437045-3 in Bulk, while 3-1393483-8 comes in a Tray. Any of the three mates with the same plug and fits the same footprint.
Yes, the 3-1393483-8 is ROHS3 compliant per the manufacturer's listing.
