TE Connectivity AMP Connectors 3-1473562-4

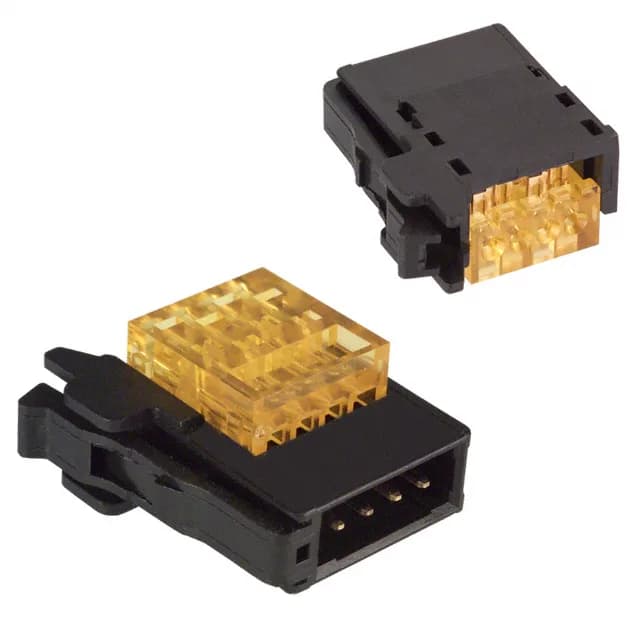

TE RITS 3-1473562-4 Plug, 4 Pos, IDC, 2.00 mm Pitch

MPN 3-1473562-4
Active

TE Connectivity RITS series, 3-1473562-4, plug, 4 positions, 1 row, 0.079" (2.00mm) pitch, IDC termination, male pin contacts, gold plating, latch lock, free hanging, black, RoHS.

$3.9100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesRITS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-1473562-4 specifications
ParameterValue
SeriesRITS
Wire typeDiscrete
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
PackageTube
Contact finishGold
Rows1
Positions4
Contact finish thickness8.00µin (0.203µm)

Product details

RITS 4-Position IDC Plug — 2.00 mm Pitch, Latch Lock

The TE Connectivity RITS 3-1473562-4 is a 4-position, single-row plug that terminates discrete wire via IDC — no crimp tool, no loose contacts.

The IDC termination accepts discrete wire — strip the wire, press it into the slot, and the insulation-displacing contacts bite through to the conductor. No crimp terminal or applicator needed, but the wire gauge range is fixed by the IDC slot geometry; confirm the wire diameter against the RITS IDC specification before committing the harness build.

Sourcing

The 4-position count matches a 4-circuit BOM line; confirm the mating half order code before placing the order.

MPN
3-1473562-4
