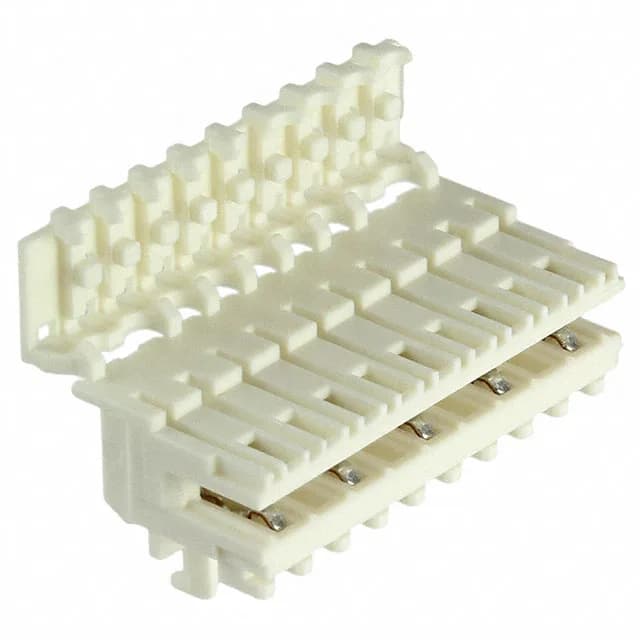

TE Connectivity DuoPlug 3-1534798-9, 9-position IDC receptacle, 0.098" (2.50mm) pitch, 1 row, tin female blade socket contacts, 22-24 AWG, free-hanging right-angle, bulk.
| Parameter | Value |
|---|---|
| Series | DuoPlug |
| Wire type | Discrete |
| Type | Female Blade Socket |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Wire gauge | 22-24 AWG |
| Cable termination | IDC |
| Color | Natural |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Features | Mates to PCB |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 9 |
This is a free-hanging, right-angle receptacle that mates to PCB headers of the same DuoPlug series. IDC termination means the wire insulation is pierced by the contact tines as the cover is pressed down — no stripping, no crimping. The 22-24 AWG range covers common signal-level wiring in control panels, sensors, and internal device harnesses.
The 3-1534798-9 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your quantity.
The 3-1534798-9 mates with DuoPlug PCB headers of the same 0.098" (2.50mm) pitch. It is a receptacle that mates directly to the board-mounted header, forming a wire-to-board interconnect.
