11-Position IDC Receptacle for Discrete Wire Harnesses

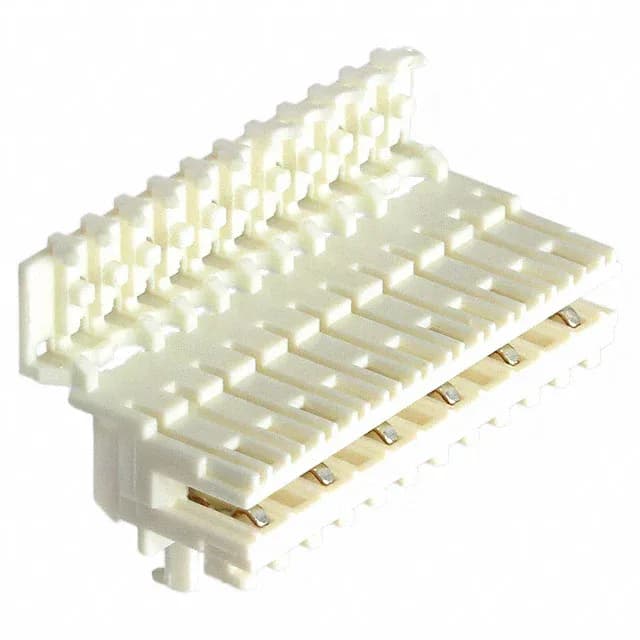

The TE Connectivity DuoPlug 3-1534799-1 is an 11-position, single-row receptacle that terminates discrete 22-24 AWG wire via IDC (Insulation Displacement Connection).
This connector uses IDC termination, meaning the insulation is displaced by the contact tines as the wire is pressed in — no stripping or crimping tool needed for the wire itself, though a dedicated IDC press is required for consistent insertion. It accepts 22-24 AWG discrete wire, a common range for signal and low-current power runs inside equipment.
The free-hanging, right-angle mount means the receptacle body sits in-line with the wire but the mating face is perpendicular to the cable exit. This is a space-conscious layout for routing the harness parallel to the PCB while plugging into a vertical header. The 'Mates to PCB' feature confirms it connects to a standard pin header, not a wire-to-wire housing.
