TE Connectivity AMP Connectors 3-1734248-0 — FFC / FPC Cable Assemblies

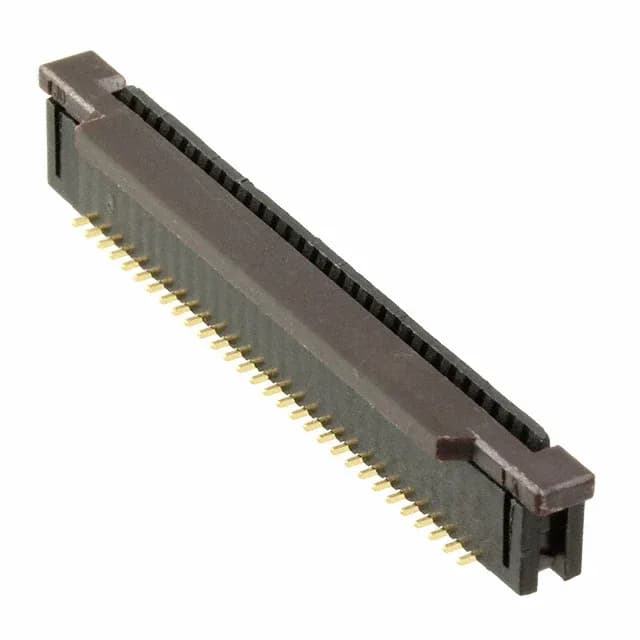

3-1734248-0 TE Connectivity FPC Connector 30 Pos 1mm SMD ZIF

MPN3-1734248-0
Active

TE Connectivity AMP Connectors, FPC connector, 30 positions, 1.00 mm pitch, vertical SMD, ZIF slide-lock, gold flash contacts, 1 A per circuit, 125 V, -20 to 85 °C

$1.8000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-1734248-0 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-1734248-0 key specifications
ParameterValue
MountingSurface Mount
Cable end typeTapered
Flat flex typeFPC
Connector (Contact type)Contacts, Vertical - 1 Sided
Voltage rating125V
Current rating1A
Operating temperature-20°C ~ 85°C
Housing colorBlack
Actuator colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA9T), Nylon 9T
Actuator materialPolyamide (PA9T), Nylon 9T

All specifications

3-1734248-0 additional specifications
ParameterValue
Height above board0.217\" (5.50mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesZero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions30
Contact finish thicknessFlash

Product details

30-pin 1 mm FPC with ZIF slide-lock

The 3-1734248-0: This is a 30-position, 1.00 mm pitch FPC connector from TE Connectivity's 1734248 series, terminated by solder to the board surface and actuated by a Zero Insertion Force (ZIF) slide-lock mechanism. The vertical orientation keeps the FPC standing off the board, and the gold flash on the phosphor bronze contacts is rated for 20 mating cycles — enough for field-service connections where the cable is swapped a handful of times over the product life.

Frequently asked questions

What is the pitch of 3-1734248-0?

The pitch is 0.039" (1.00 mm). This is the centre-to-centre spacing between adjacent contacts, matching the FPC pad pitch.

Is 3-1734248-0 a ZIF connector?

Yes, it features Zero Insertion Force (ZIF) with a slide-lock actuator. The FPC inserts freely, then the slide lock clamps the contacts.
