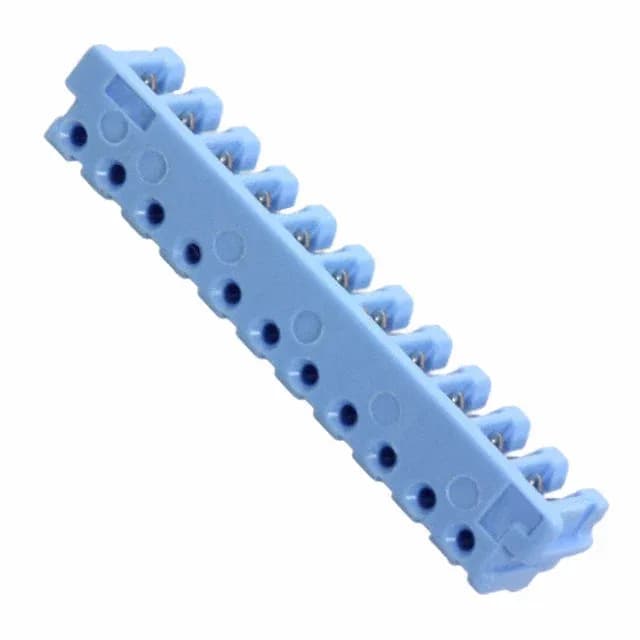

11-Position IDC Receptacle for 2.00 mm Pitch Harnesses
Tin-plated female sockets suit low-cycle, cost-sensitive applications — the contact finish trades mating cycle life for lower per-position cost.
IDC termination eliminates individual crimp operations — the wire is pressed into insulation-displacement slots in one step. The 26-28 AWG range is tight; only discrete wire within that gauge fits the slot geometry. The free-hanging (in-line) mount means this receptacle is wired into a harness, not soldered to a board, and mates with a CT-series pin header.
Active Lifecycle and Sourcing
The product status is Active and ROHS3 Compliant.
