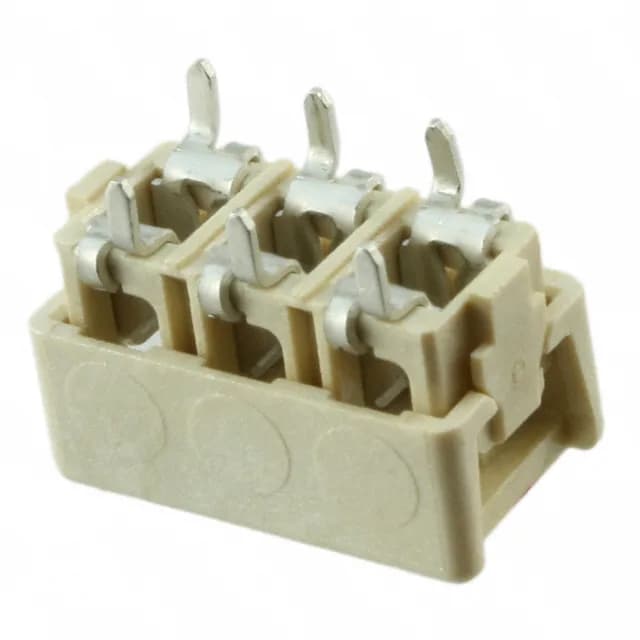

TE Connectivity, IDC connector, 3-2106489-3, 3 positions, single row, 0.157" (4.00 mm) pitch, 24 AWG, through-hole right-angle, tin contacts, closed end.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Individual Wires |
| Wire gauge | 24 AWG |
| Cable pitch | 0.157\" (4.00mm) |
| Cable termination | IDC |
| Color | Natural |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Closed End |
| Contact finish | Tin |
| Rows | 1 |
| Board-Side pitch | 0.157\" (4.00mm) |
| Positions | 3 |
The closed-end design means the connector terminates the cable at this point — no pass-through for daisy-chaining. Tin contacts are standard for cost-sensitive, low-cycle or permanent installations.
This IDC connector is specified for 24 AWG wire only. The insulation-displacement slot geometry is sized for that gauge.
Yes, the 3-2106489-3 is ROHS3 compliant, covering the latest substance restrictions for EU-market equipment.
