SCSI .050 Receptacle — 26-Position, Right-Angle, Board Lock

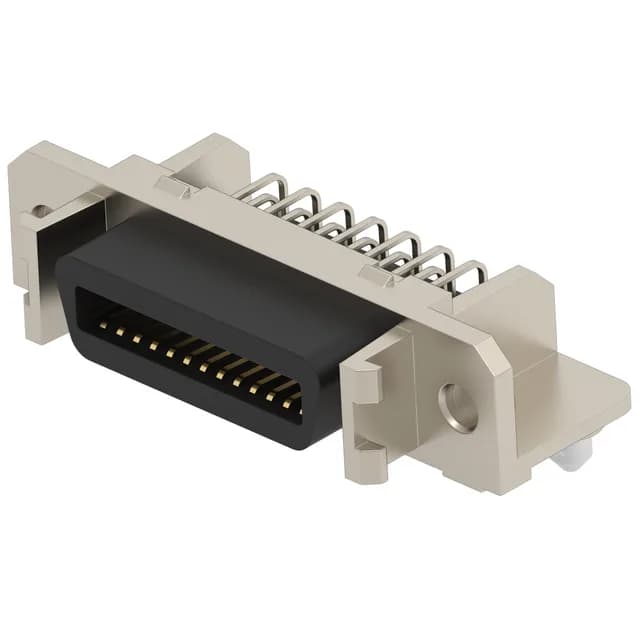

The TE 3-2232516-1 is a 26-position SCSI receptacle from the SCSI series, designed with outer shroud contacts for shielded signal termination in parallel-interconnect applications. It carries 26 circuits across two rows at the standard 0.050-inch pitch that defines the SCSI form factor — the pitch drives the board footprint and the mating interface with the corresponding SCSI plug. The mounting arrangement is the key fit detail: panel mount, through-hole, and right-angle orientation all in one body.
Termination is solder — the through-hole tails are designed for wave or hand-solder attachment to the PCB. The receptacle mates with a standard SCSI plug (50-mil pitch, 26-position, outer-shroud interface); the latchblocks on the flange provide positive locking against the plug's ejector mechanism. No crimp or IDC termination option is listed for this member — it is a board-side receptacle, not a cable-end connector.
