TE Connectivity AMP Connectors 3-2834074-2

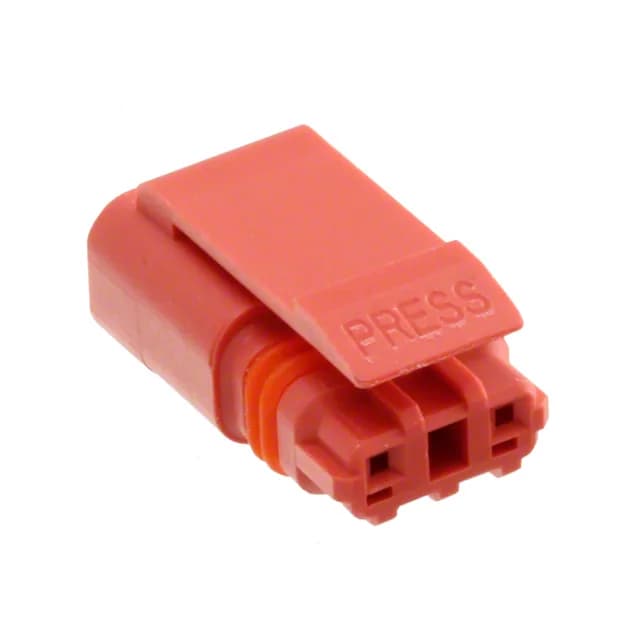

TE Connectivity 3-2834074-2 SlimSeal Plug Housing, 2 Pos

MPN 3-2834074-2
Active

TE Connectivity SlimSeal plug housing for socket contact, 2 circuits, 0.098" (2.50mm) pitch, IP67 sealed, latch lock, crimp termination, free hanging, red thermoplastic, -40°C to 105°C.

$1.0600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-2834074-2 specifications
ParameterValue
SeriesSlimSeal
MountingFree Hanging (In-Line)
Connector typePlug Housing for Socket Contact
Fastening typeLatch Lock
Voltage rating400V
Current rating3.5A, 5A
IP ratingIP67 - Dust Tight, Waterproof
Operating temperature-40°C ~ 105°C
Housing colorRed
Housing materialThermoplastic
Pitch0.098\" (2.50mm)
StyleCable/Wire to Cable/Wire
PackageTray
TerminationCrimp
Mating cycles30
Positions2

Product details

Sealed 2-Position Plug Housing for In-Line Harness

The TE Connectivity 3-2834074-2 is a 2-circuit plug housing from the SlimSeal series, designed to accept socket (female) crimp contacts for cable-to-cable or wire-to-wire interconnects. The 0.098" (2.50mm) pitch and 2-position count make it a compact sealed interconnect for low-circuit-count harness runs where moisture ingress is the primary concern.

IP67 Sealing and Deployment Context

The IP67 rating means this housing, when mated with the corresponding SlimSeal header and fitted with the correct seal-capped contacts, withstands dust ingress and temporary immersion in 1 meter of water for 30 minutes. This places it in outdoor LED lighting, automotive underhood sensors, marine electronics, and industrial washdown zones — anywhere a standard unsealed 2.50mm-pitch housing would fail from corrosion or shorting.

Current Rating and Contact Selection

The housing is rated for 3.5A and 5A — the dual figure reflects a derating dependency on wire gauge and ambient temperature.

The 400V voltage rating and 2.50mm pitch are consistent with the SlimSeal series' intended use in low-to-medium power sealed applications.

MPN
3-2834074-2
