TE Connectivity AMP Connectors 3-338170-2 — D-Sub Cable Assemblies

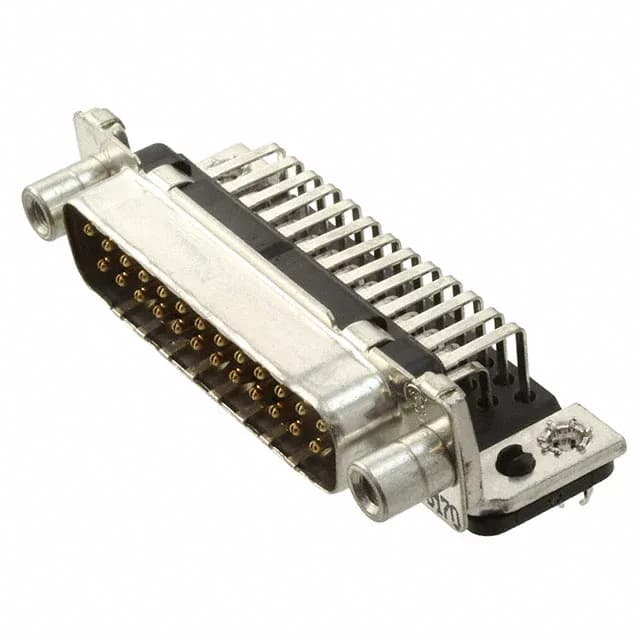

TE 3-338170-2 AMPLIMITE HD-20 D-Sub Plug, 25-Pos Right Angle

MPN3-338170-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 3-338170-2, 25 positions, 2 rows, right-angle through-hole, solder termination, gold-plated phosphor bronze contacts, rated 6A at 125V, steel shell with tin plating, UL94 V-0.

$8.5200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-338170-2 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester, Glass Filled
Shell material, finishSteel, Tin Plated

All specifications

3-338170-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.406\" (10.30mm)
Positions25

Product details

Right-Angle DB-25 Plug with Board Retention

The TE Connectivity 3-338170-2 is a 25-position D-Sub plug from the AMPLIMITE HD-20 series, terminated through-hole and mounted right-angle to the PCB. The DB-25 shell size (3, DB, B) mates with the standard DB-25 receptacle, and the 0.406" (10.30 mm) backset spacing positions the connector face for panel-mount enclosures where the board sits parallel to the panel cutout. Gold-plated phosphor bronze contacts carry the signal path, rated 6 A per circuit at 125 V — sufficient for parallel data buses, RS-232/422 ports, and low-power I/O interfaces.

Mounting and Termination Detail

Through-hole solder termination with right-angle orientation — the pins exit the rear of the shell and bend 90° to insert into the PCB. The flange feature carries female screwlocks (4-40) on the mating side, accepting the male jackscrews on the mating receptacle to secure the pair against vibration. The glass-filled polyester dielectric (UL94 V-0) insulates the contacts and withstands the soldering temperatures.

Frequently asked questions

What is the pinout and contact arrangement of 3-338170-2?

The 3-338170-2 is a 25-position D-Sub plug with 2 rows of signal contacts arranged in the standard DB-25 layout. The shell size is 3 (DB, B), and the contacts are gold-plated phosphor bronze rated 6 A per circuit at 125 V.

Is there a direct replacement or equivalent for 3-338170-2?

The 25-position DB-25 shell size is standard, but the specific board-lock feature, 0.406" backset spacing, and right-angle orientation are tied to this TE part number.
