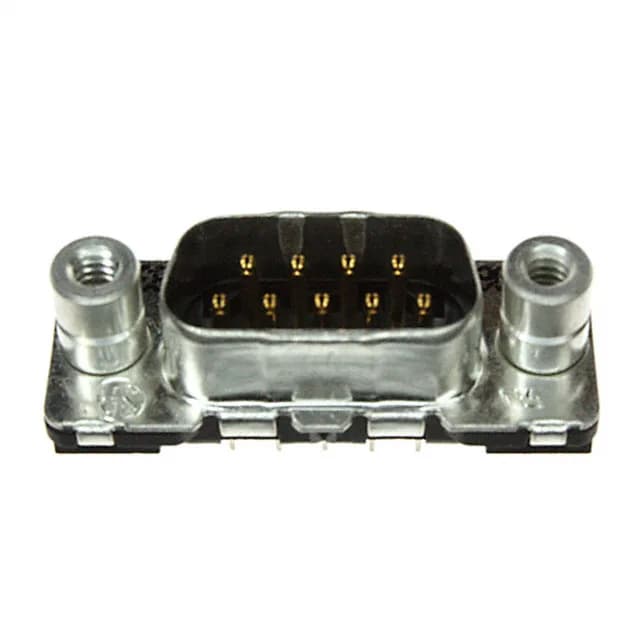

TE 3-338309-2 AMPLIMITE HDP-20 D-Sub Plug, 9 Pos, 6A

MPN3-338309-2
Active

TE Connectivity AMPLIMITE HDP-20 D-Sub plug, 3-338309-2, 9 positions, 2 rows, 6A, gold contacts, through-hole solder, board locks, UL94 V-0.

$8.9400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 3-338309-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HDP-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3-338309-2 key specifications
ParameterValue
SeriesAMPLIMITE HDP-20
TypeSignal
MountingThrough Hole
Connector typePlug, Male Pins
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester, Glass Filled
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0

All specifications

3-338309-2 additional specifications
ParameterValue
PackageTray
FeaturesBoard Lock, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Positions9

Product details

Panel and Harness Fit: DB-9 Plug with Board Locks

It terminates signal contacts via through-hole solder to a PCB. The shell size is DE (E), the standard layout for a 9-pin D-sub, so it mates with any DE-size receptacle housing. Rated 6A per contact with gold-plated phosphor bronze pins, this connector is sized for signal-level currents in serial, parallel, or industrial I/O interfaces.

RoHS compliant per the listing. The part ships in tray packaging.

Mates with any standard DE-size D-sub receptacle housing (female socket side) that accepts 4-40 screwlocks. The through-hole solder termination is a standard 0.318-inch row spacing for a DB-9 footprint — confirm the PCB hole pattern against the product drawing before layout.

Frequently asked questions

Does 3-338309-2 have board locks?

Yes, the 3-338309-2 includes board locks and grounding indents. The board locks anchor the connector during wave solder, and the grounding indents bleed shield current before it reaches the signal pins.

What is the pinout of 3-338309-2?

The 3-338309-2 is a 9-position D-sub plug with the standard DE (E) shell layout. The pinout follows the DB-9 convention — positions 1 through 9 in two rows. Confirm the specific wiring against the mating receptacle's pinout for your application.

Is 3-338309-2 RoHS compliant?

Yes, the 3-338309-2 is listed as RoHS compliant.
