Pin Socket for Precision Interconnects
The 3-5331272-5: Termination is solder, with a knockout bottom feature and no tail, suiting through-hole mounting where the socket sits flush against the board.

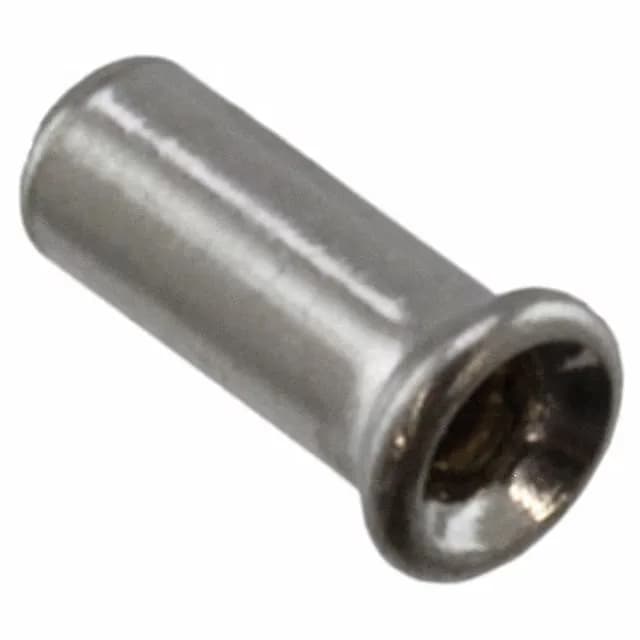

3-5331272-5 TE Connectivity PCB Pin Socket
MPN3-5331272-5
Active
TE Connectivity AMP Connectors Series 2 PCB pin socket, 3-5331272-5, accepts 0.022"~0.025" pin diameter, 30.0µin gold over beryllium copper contact, solder termination, bulk package.
$0.9600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series2
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 2 |
| Tail type | No Tail |
| Mounting hole diameter | 0.052\" (1.32mm) |
| Operating temperature | -65°C~126°C |
| Socket depth | 0.125\" (3.18mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Features | Knockout Bottom |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.070\" (1.77mm) |
| Length - overall | 0.138\" (3.51mm) |
| Accepts pin diameter | 0.022\" ~ 0.025\" (0.56mm ~ 0.64mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 3-5331272-5 and what is the lead time?
3-5331272-5 is active and can be ordered through our distribution channel.
What pin diameter does 3-5331272-5 accept?
It accepts pin diameters from 0.022" to 0.025" (0.56mm to 0.64mm).
Is 3-5331272-5 RoHS compliant?
Yes, it is ROHS3 compliant.
