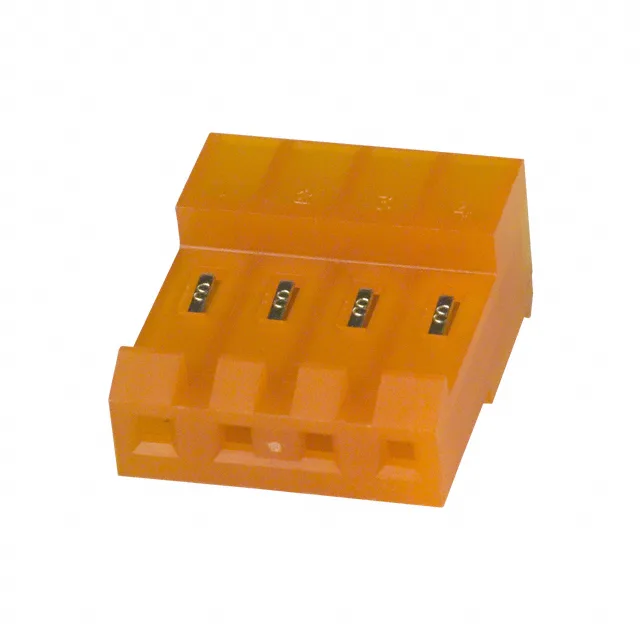

The TE Connectivity MTA-156 3-640426-4 is a 4-position, single-row IDC receptacle in the MTA-156 family. Its 0.156" (3.96mm) pitch is the standard spacing for this series — wide enough to route discrete 18 AWG wires without crowding, but tight enough to keep the connector compact for a 4-circuit harness. The orange housing is a visual keying cue within the MTA line; it tells the assembler which wire group or voltage domain this connector belongs to without reading a label. This is a wire-to-board connector: the receptacle terminates discrete wires via IDC (insulation displacement) and mates with a 0.045" square pin header (the MTA-156 header series). That saves assembly time but locks the wire gauge: it's rated for 18 AWG only, and re-terminating a pulled wire means cutting off the old end and using a new housing slot. For a harness that gets mated a few times in its life (appliance internal, control cabinet, lighting fixture), this is a solid, cost-effective choice.
Where It Fits — and Where It Doesn't
The MTA-156 series is a workhorse for internal wiring in appliances, HVAC controls, vending machines, and industrial panels — anywhere you need a reliable, low-cost wire-to-board interconnect that doesn't get mated and unmated daily. The IDC termination works best with solid or stranded 18 AWG wire that has a consistent insulation OD; the slot geometry is designed for a specific wire range, so deviating from 18 AWG risks a loose or damaged termination. The locking ramp provides enough retention for moderate vibration (think a washing machine drum or a conveyor motor), but for high-vibration environments like an engine compartment, you'd want a connector with a secondary lock or a screw flange. The free-hanging mounting means the receptacle floats in the harness — no board-mounting holes, no panel clips — so the strain relief is entirely on the wire and the latch.
