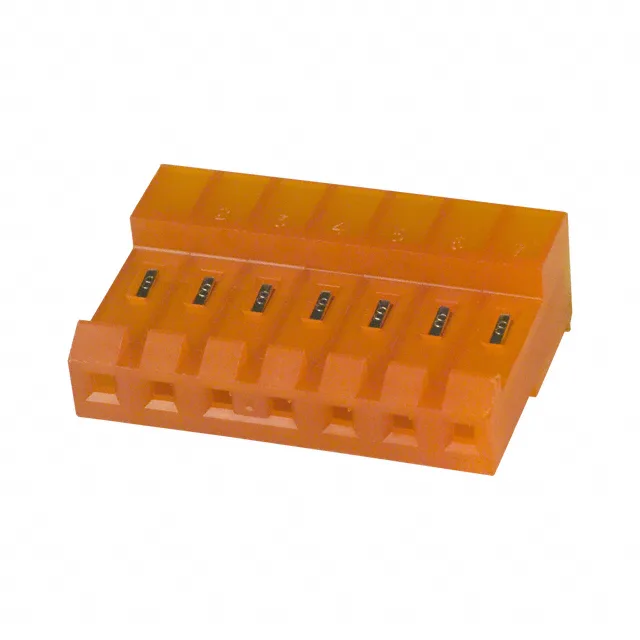

3-640426-7 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-156 3-640426-7, 7-Position IDC Receptacle

MPN3-640426-7
Active

TE Connectivity MTA-156 IDC Receptacle, 3-640426-7, 7 positions, 1 row, 0.156" (3.96mm) pitch, 18 AWG, tin 80.0µin, locking ramp, free-hanging.

$0.7500Ref. price · indicative, final on quote
3-640426-7 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-640426-7 Technical Specifications
ParameterValue
SeriesMTA-156
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge18 AWG
Cable terminationIDC
ColorOrange
Pitch0.156\" (3.96mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions7
Contact finish thickness80.0µin (2.03µm)

Product details

Discrete-Wire IDC Receptacle for Harness Assembly

The TE Connectivity MTA-156 3-640426-7 is a 7-position single-row receptacle that terminates 18 AWG discrete wire directly through an IDC slot — no wire stripping, no crimp contacts, and no secondary insertion tool.

IDC Termination for 18 AWG Discrete Wire

For 18 AWG discrete wire, that means no crimp tool, no loose terminals, and one less step on the assembly line. The wire type is discrete, not ribbon cable, so each conductor is routed individually through the harness.

Mating Half and Housing Fit

The closed-end feature means the housing is fully enclosed on the wire-entry side, which keeps debris out of the IDC slot during handling. Free-hanging (in-line) mounting lets it sit anywhere along the harness without a board mount.

Frequently asked questions

What is the mating connector for 3-640426-7?

The 3-640426-7 mates with a matching MTA-156 pin header — the locking ramp on this receptacle engages the latch on the header side. The exact header part number depends on the pin count and orientation needed for your board layout.

What wire gauge does 3-640426-7 support?

It is designed for 18 AWG discrete wire. The IDC slot geometry and contact beam are sized for that gauge — using a different wire size will not achieve a reliable insulation displacement connection.
