TE Connectivity AMP Connectors 3-640428-9 — Panel-Mount & In-Line Circular

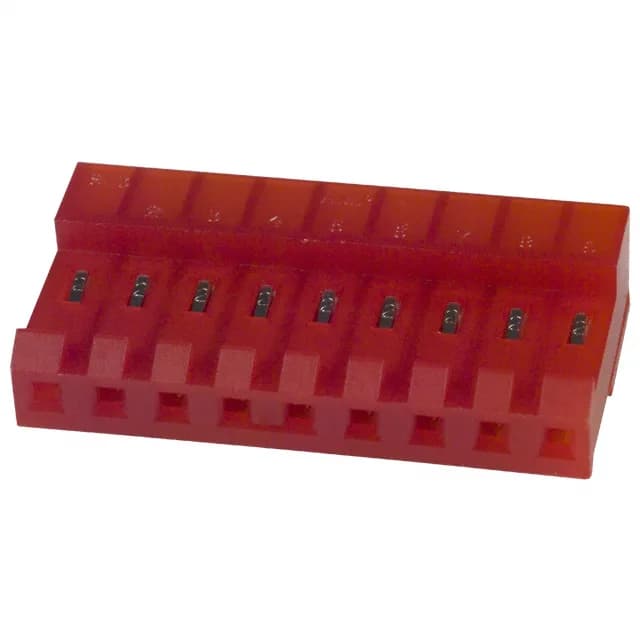

TE MTA-156 3-640428-9, 9-Pos IDC Receptacle, 0.156" Pitch

MPN3-640428-9
Active

TE Connectivity MTA-156 IDC receptacle, 9 positions, 0.156" (3.96mm) pitch, single row, tin contacts, locking ramp, closed-end, free-hanging, 22 AWG, bulk.

$0.8300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-156
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-640428-9 specifications
ParameterValue
SeriesMTA-156
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.156\" (3.96mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions9
Contact finish thickness80.0µin (2.03µm)

Product details

MTA-156 IDC Receptacle, 9 Positions, 0.156" Pitch

The closed-end feature stops the cable from pushing through the back of the housing during IDC termination, which saves a rework step on the harness bench.

For a complete spare kit, stock both halves or neither; an orphan receptacle on the shelf is dead stock until its header arrives. Wire gauge is fixed at 22 AWG for the IDC termination — the slot width in the insulation displacement contact is sized for that diameter. The connector does not accept 18 AWG wire; the IDC slot will not cut through the thicker insulation reliably.

Frequently asked questions

What is the mating connector for 3-640428-9?

The 3-640428-9 mates with a 9-position, single-row MTA-156 pin header at the same 0.156" pitch. The locking ramp on the receptacle engages the ramp on the header for vibration-resistant retention.

Where can I buy 3-640428-9 in bulk quantity?

This part is active and sourced to order against your RFQ. Availability and pricing are confirmed at quote time.
