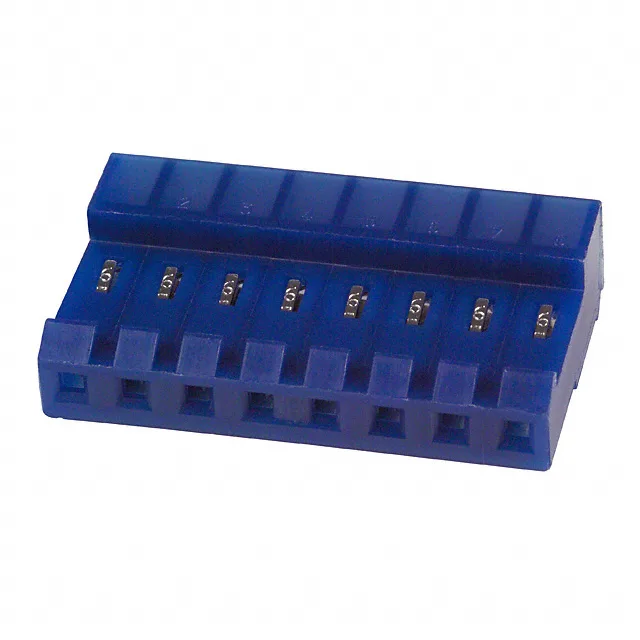

3-640430-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 3-640430-8 MTA-156 IDC Receptacle, 8 Pos

MPN3-640430-8
Active

TE Connectivity MTA-156 series, IDC receptacle, 8 positions, 1 row, 0.156" (3.96mm) pitch, tin contact finish, free hanging, locking ramp, 26 AWG, closed end.

$0.8500Ref. price · indicative, final on quote
3-640430-8 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

3-640430-8 Technical Specifications
ParameterValue
SeriesMTA-156
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge26 AWG
Cable terminationIDC
ColorBlue
Pitch0.156\" (3.96mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions8
Contact finish thickness80.0µin (2.03µm)

Product details

The 0.156" (3.96mm) pitch is the standard spacing for this series, matching the MTA-156 header footprint. The closed-end feature means the cable stops at position 8 — no pass-through for daisy-chaining.

Termination and Wire Gauge

The 26 AWG wire is pressed into the IDC slot, displacing insulation to make contact. No crimp tool or stripping step needed.

Mating and Compatibility

The 3-640430-8 mates with any MTA-156 header of the same 8-position count and 0.156" pitch — vertical or right-angle, through-hole or surface-mount. The single-row, free-hanging (in-line) mounting style means it terminates the cable end and plugs onto a board-mounted header. The closed end prevents the cable from extending past position 8, which matters if you're routing the harness tight to the board edge.

Frequently asked questions

Is 3-640430-8 compatible with MTA-156 headers?

Yes, the 3-640430-8 mates with any 8-position MTA-156 header at 0.156" pitch. The locking ramp on the receptacle engages the header ramp for positive retention. Confirm the header is also 8-position and single-row.
