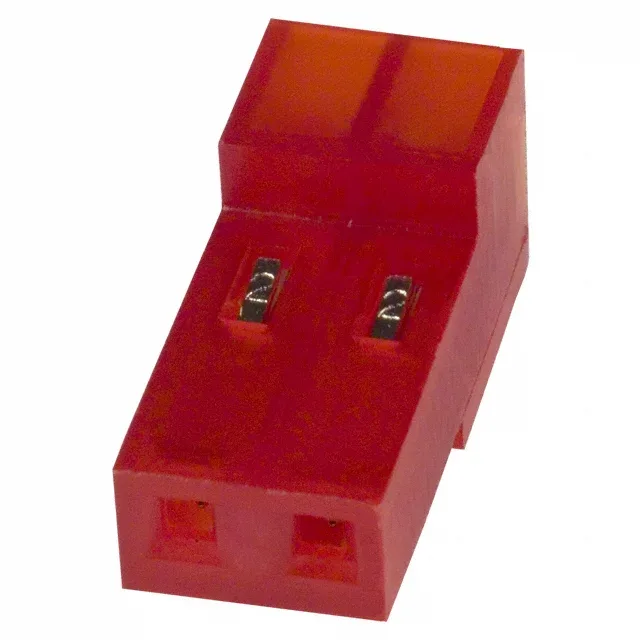

3-640433-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-156 3-640433-2, 2 Pos IDC Receptacle, 0.156" Pitch

MPN3-640433-2
Active

TE Connectivity MTA-156 receptacle, 3-640433-2, 2 positions, 1 row, 0.156" (3.96mm) pitch, IDC termination, 22 AWG, tin contacts, 80.0µin plating, free hanging, closed end, red.

$0.4300Ref. price · indicative, final on quote
3-640433-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-640433-2 Technical Specifications
ParameterValue
SeriesMTA-156
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.156\" (3.96mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions2
Contact finish thickness80.0µin (2.03µm)

Product details

MTA-156 Receptacle, 2-Position IDC — Pitch First

The 0.156" (3.96mm) pitch is the first compatibility check — it mates with any standard MTA-156 header at the same pitch. The closed-end design blocks the last cavity, preventing mis-insertion at the wire stop.

IDC Termination — Wire and Tooling

This receptacle uses insulation displacement contacts sized for 22 AWG wire. The free-hanging (in-line) mount means the receptacle floats in the harness, not fixed to a panel or board.

Mates with any standard MTA-156 header at the same 0.156" (3.96mm) pitch — typically a straight or right-angle pin header with 0.045" square posts. The single-row, 2-position layout matches a 2-circuit BOM line. The red housing colour is a visual key for the closed-end variant; natural (white) open-end versions also exist in the series. No keying or polarisation beyond the closed-end wall — verify header orientation before specifying.

Frequently asked questions

Where can I buy 3-640433-2 and what is the price?

3-640433-2 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at the time of quote — no stock-holding or price list is published for this line.

Is 3-640433-2 compatible with standard MTA-156 headers?

Yes. The 0.156" (3.96mm) pitch and single-row layout match standard MTA-156 pin headers. The closed-end receptacle mates with any header that shares the same pitch and position count.

What gauge wire does 3-640433-2 accept?

22 AWG wire, discrete or ribbon cable, terminated via IDC. No crimp terminal is required — the wire is pressed directly into the insulation displacement slot.
