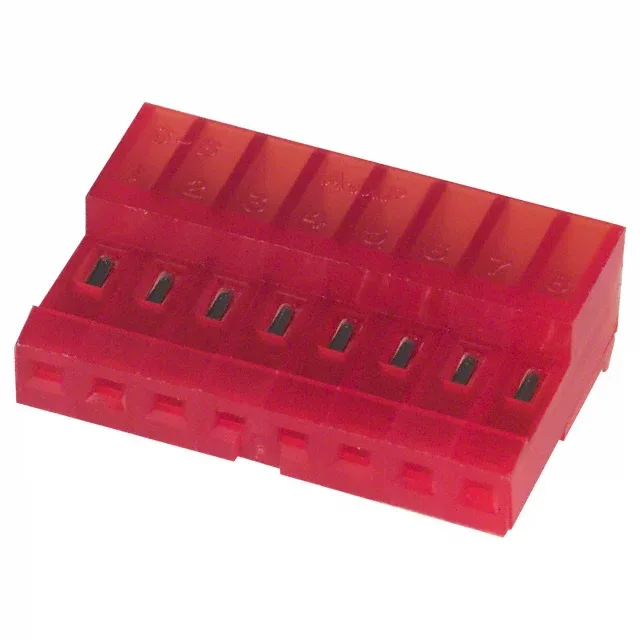

3-640440-8 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 3-640440-8, 8-Pos IDC Receptacle, 0.100" Pitch

MPN3-640440-8
Active

TE Connectivity MTA-100 series, 8-position IDC receptacle, 0.100" (2.54mm) pitch, tin-plated female socket contacts, locking ramp, free-hanging right-angle mount, 22 AWG discrete or ribbon cable.

$0.5900Ref. price · indicative, final on quote
3-640440-8 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

3-640440-8 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions8
Contact finish thickness80.0µin (2.03µm)

Product details

MTA-100 IDC Receptacle for Discrete or Ribbon Cable

The 0.100" (2.54mm) pitch matches the standard MTA-100 header footprint, so the board layout is the same as any other member of this series. The red housing with a closed end and locking ramp gives positive retention against the mating header — the ramp locks audibly on insertion and holds under vibration.

The wire type is listed for discrete or ribbon cable, so this receptacle works on a discrete harness or a ribbon jumper. The 22 AWG wire gauge is the only size specified; the IDC slot geometry is tuned for that gauge, and forcing a different size risks an intermittent connection.

Frequently asked questions

Where can I buy 3-640440-8 and what is the lead time?

3-640440-8 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding or lead-time figure is published here. Submit an RFQ for your quantity and the desk will confirm supply.

Can 3-640440-8 be used for both discrete wire and ribbon cable?

Yes, the wire type is specified for discrete or ribbon cable. The IDC termination accepts either, as long as the wire is 22 AWG.
