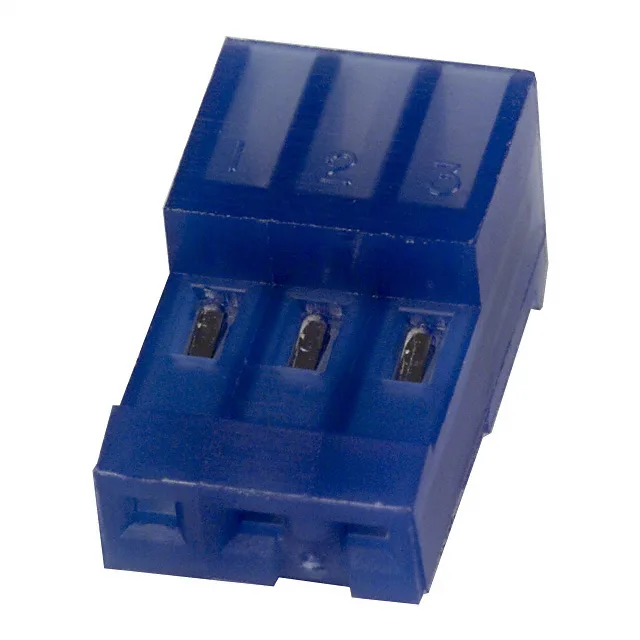

TE Connectivity MTA-100 receptacle, 3 positions, 0.100" (2.54 mm) pitch, IDC termination, tin-plated female socket, free-hanging right-angle, locking ramp, closed end, blue, bulk.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 26 AWG |
| Cable termination | IDC |
| Color | Blue |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 3 |
| Contact finish thickness | 80.0µin (2.03µm) |
The 0.100" (2.54 mm) pitch matches the standard MTA-100 header footprint, and the closed-end design prevents stubbing during assembly.
Cable termination is IDC, accepting 26 AWG wire. The connector supports both free-hanging (in-line) and right-angle mounting orientations, giving flexibility in harness routing.
The 3-640442-3 mates with the matching MTA-100 male header (0.100" pitch, 3 positions) from TE Connectivity. The locking ramp on the receptacle engages the header latch for vibration-resistant retention.
Yes, the 3-640442-3 is listed as RoHS Compliant.
