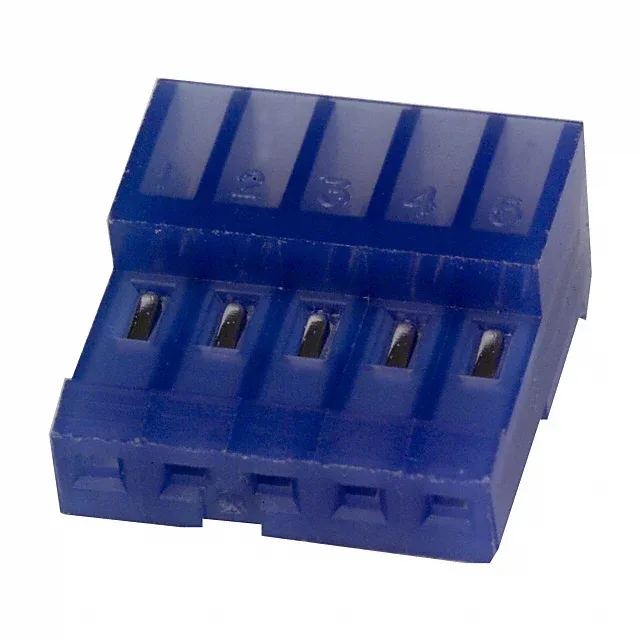

3-640442-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 3-640442-5, 5 Pos IDC Receptacle, 0.100" Pitch

MPN3-640442-5
Active

TE MTA-100 series receptacle, 5 position, single row, 0.100" (2.54mm) pitch, IDC termination, tin plated contacts, locking ramp, blue housing.

$0.3900Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-640442-5 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge26 AWG
Cable terminationIDC
ColorBlue
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions5
Contact finish thickness80.0µin (2.03µm)

Product details

The TE MTA-100 3-640442-5 is a 5-position, single-row receptacle from the MTA-100 series, terminated via IDC to 26 AWG discrete or ribbon cable. The locking ramp holds the mate against vibration, which matters when this connector lives inside an industrial cabinet or a home appliance that sees shipping or fan vibration. The blue housing is a visual cue on the harness: if you're doing field replacement, you spot the color before you pull the wrong connector.

Wiring and Termination Reality

IDC termination means this is a factory or bench operation — you don't field-strip and crimp individual wires. The connector accepts 26 AWG wire in either discrete or ribbon cable form. The closed-end feature means the IDC slots stop at the last position; there's no daisy-chain pass-through on the far side. For harness builders: plan the cable routing before termination because the IDC is permanent — no rework if you misroute.

Frequently asked questions

Where can I buy 3-640442-5?

3-640442-5 is sourced to order through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time. No stock-holding claim; we locate the real date-coded stock on the spot market.

What is the mating connector for 3-640442-5?

This receptacle mates with the matching MTA-100 header (male pin, 0.100" pitch, single row). The locking ramp engages the header's latch ramp for vibration-resistant retention.

What is the wire gauge for 3-640442-5?

The IDC termination accepts 26 AWG wire, discrete or ribbon cable.
