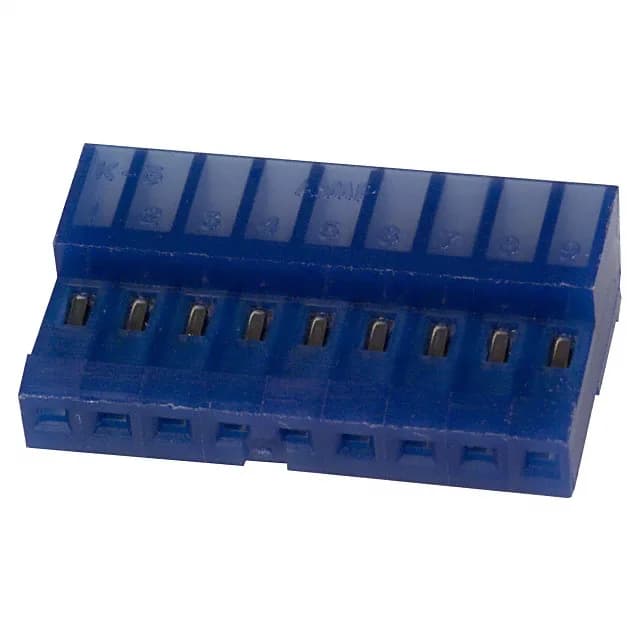

TE Connectivity MTA-100 receptacle, 9 positions, 0.100" (2.54mm) pitch, IDC termination, tin-plated female socket, locking ramp, free-hanging right-angle, closed end, bulk.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 26 AWG |
| Cable termination | IDC |
| Color | Blue |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 9 |
| Contact finish thickness | 80.0µin (2.03µm) |
The TE Connectivity MTA-100 3-640442-9 is a 9-position, single-row IDC receptacle built for discrete or ribbon cable. The closed end blocks cable insertion from the wrong side — a small detail that saves rework on the line.
The IDC termination pierces 26 AWG wire insulation in one press; no stripping, no crimp tool.
No last-time-buy or end-of-life notice is on record.
The 3-640442-9 mates with a standard MTA-100 0.100" pitch header (male pin strip). The locking ramp on the receptacle engages the header's ramp slot for vibration-resistant retention.
