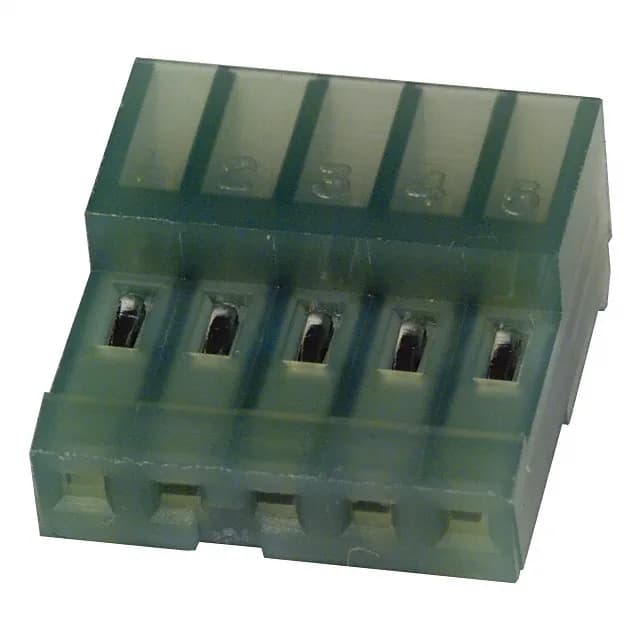

TE MTA-100 3-640443-5, 5-Pos IDC Receptacle, 0.100" Pitch

MPN3-640443-5
Active

TE Connectivity MTA-100 IDC receptacle, 3-640443-5, 5 positions, 0.100" (2.54mm) pitch, single row, tin-plated female socket, locking ramp, closed end, free-hanging right-angle, 28 AWG, bulk.

$0.3900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-640443-5 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge28 AWG
Cable terminationIDC
ColorGreen
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions5
Contact finish thickness80.0µin (2.03µm)

Product details

The closed end means this receptacle terminates the end of a wire run, not a pass-through daisy chain.

Termination and Plating — What Matters in the Field

Termination is IDC — the contacts pierce the wire insulation as the cover is pressed down, no crimp tool needed. That makes it fast for repetitive harness builds, but the connection is permanent: once terminated, you don't rework it. The tin plating at 80.0 µ" (2.03 µm) is thick enough for a reliable gas-tight joint in indoor environments; tin is fine for limited mating cycles (a few dozen at most) and holds up in dry, temperature-controlled gear. If the harness sees frequent disconnect or corrosive fumes, gold-plated MTA-100 variants exist — but for a one-and-done wire-to-board run, this tin contact does the job.

Frequently asked questions

What wire gauge does 3-640443-5 accept?

It is specified for 28 AWG discrete or ribbon cable, terminated via IDC — no stripping or crimping needed.
