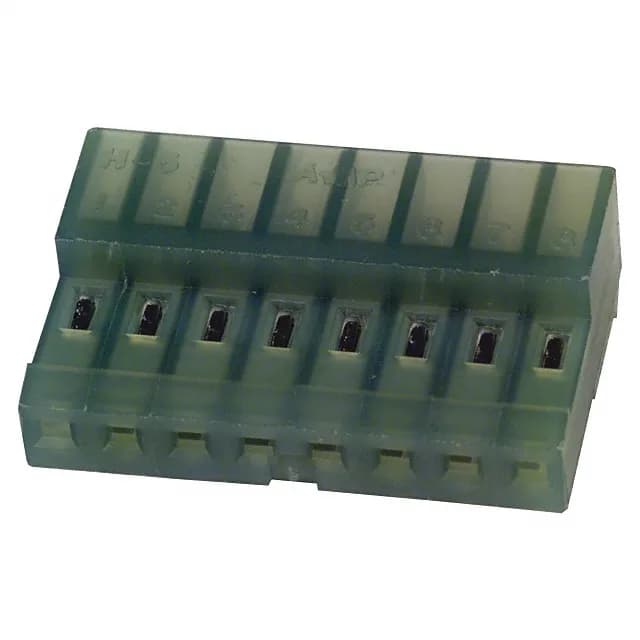

TE Connectivity MTA-100 receptacle, 3-640443-8, 8 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, 28 AWG, tin contacts, locking ramp, closed end, bulk.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 28 AWG |
| Cable termination | IDC |
| Color | Green |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 8 |
| Contact finish thickness | 80.0µin (2.03µm) |
It sits in the MTA-100 series at 0.100" (2.54mm) pitch — the standard spacing for this family, which means it mates directly with MTA-100 headers on that same pitch. The closed-end housing blocks cable insertion from the wrong side, a detail that saves a rework cycle if you're building or repairing a harness on site.
Rated for 28 AWG wire, discrete or ribbon cable.
3-640443-8 is sourced to order through independent distribution. Submit an RFQ for your quantity — availability and pricing are confirmed at quote time.
Yes, 3-640443-8 is ROHS3 Compliant per the manufacturer's listing.
Yes, the receptacle is rated for 28 AWG discrete or ribbon cable, terminated via IDC.
The pitch is 0.100" (2.54mm), standard for the MTA-100 series.
