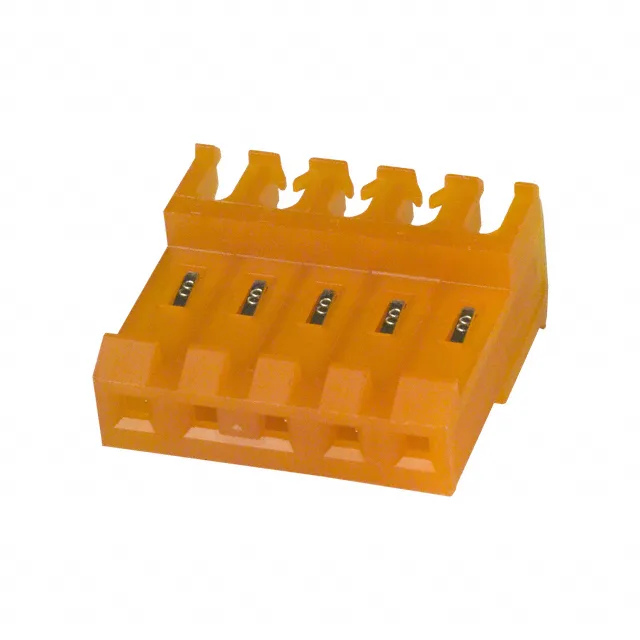

3-640599-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-156 3-640599-5, 5-Pos IDC Receptacle, 0.156" Pitch

MPN3-640599-5
Active

TE Connectivity MTA-156 receptacle, 3-640599-5, 5 positions, 1 row, 0.156" (3.96mm) pitch, IDC termination, 18 AWG, tin contacts, free-hanging, locking ramp, orange housing.

$0.7000Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-640599-5 Technical Specifications
ParameterValue
SeriesMTA-156
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge18 AWG
Cable terminationIDC
ColorOrange
Pitch0.156\" (3.96mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions5
Contact finish thickness80.0µin (2.03µm)

Product details

MTA-156 IDC Receptacle for 18 AWG Harness Wiring

The 0.156" (3.96mm) pitch matches the standard MTA-156 header footprint, and the orange housing signals the 18 AWG wire gauge — part of the series' color-coding scheme that prevents wire-size mix-ups on the line.

What the 80.0 µin Tin Finish Means for the Harness

Feed-Through and Daisy-Chain Wiring

The feed-through feature means the IDC contacts pass the signal through the housing, allowing multiple receptacles to be daisy-chained on the same cable without cutting or splicing. This is common in MTA-156 bus wiring for power distribution or signal routing inside an enclosure — you run one cable and tap off at each receptacle position.

Frequently asked questions

Is 3-640599-5 RoHS compliant?

Yes, the 3-640599-5 is listed as RoHS Compliant.

What is the pitch of the 3-640599-5 connector?

The pitch is 0.156" (3.96mm), standard for the MTA-156 series.

What connector mates with 3-640599-5?

It mates with any MTA-156 header (male pin) of the same 0.156" pitch and 5 positions, with a locking ramp feature to engage the receptacle's latch.
