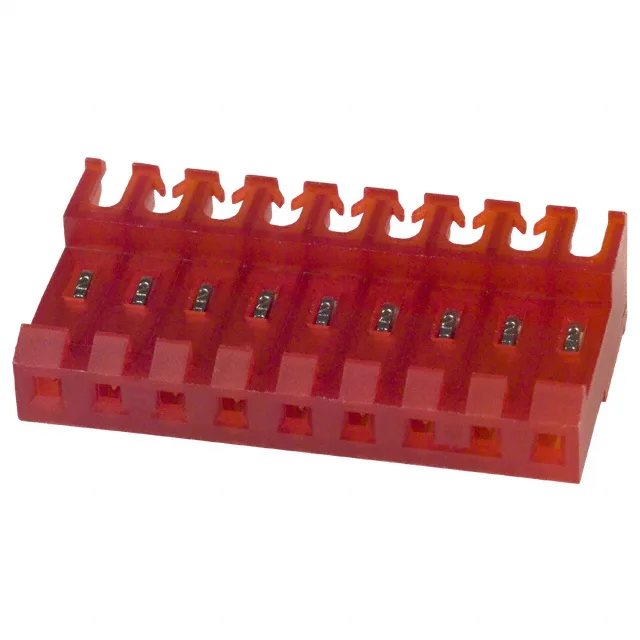

3-640601-9 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-156 3-640601-9, 9-Pos IDC Receptacle, 0.156" Pitch

MPN3-640601-9
Active

TE Connectivity MTA-156 IDC receptacle, 9 positions, 0.156" (3.96mm) pitch, tin-plated female socket, free-hanging, locking ramp, 22 AWG, red housing.

$0.9600Ref. price · indicative, final on quote
3-640601-9 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

3-640601-9 Technical Specifications
ParameterValue
SeriesMTA-156
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.156\" (3.96mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions9
Contact finish thickness80.0µin (2.03µm)

Product details

The 0.156" (3.96mm) pitch matches the standard MTA-156 header footprint, and the locking ramp provides a positive retention against vibration — no secondary latch needed.

No stripping or crimping tool needed for the wire side; the termination is done in one press operation. The free-hanging (in-line) mount lets it float in the harness, and the locking ramp snaps onto the header's ramp for a vibration-resistant mate. The red housing colour is a visual aid for line-side identification.

The active lifecycle means no supply discontinuity is expected, but the BOM quantity should drive the order.

Frequently asked questions

Where can I buy 3-640601-9 available via RFQ confirmation?

The 3-640601-9 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

Is 3-640601-9 compatible with standard MTA-156 headers?

Yes, the 0.156" (3.96mm) pitch and locking ramp design are standard for the MTA-156 header family. It mates with any MTA-156 header of the same position count.

What is the wire gauge for 3-640601-9?

The 3-640601-9 is specified for 22 AWG discrete or ribbon cable.
