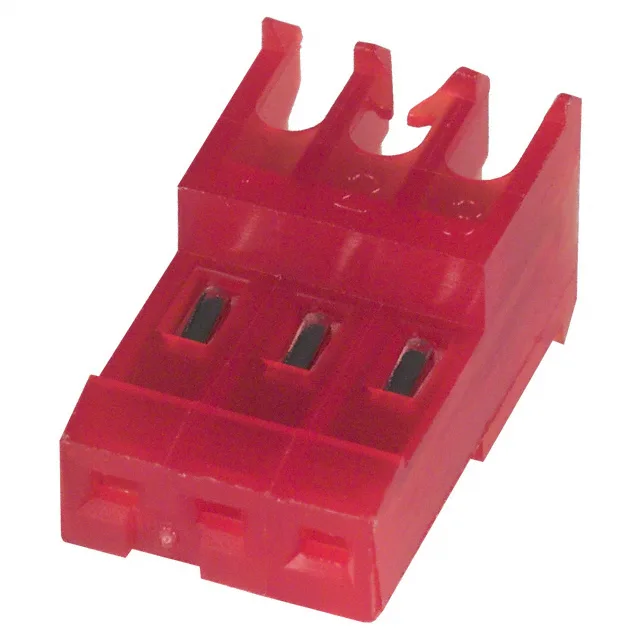

3-640620-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 3-640620-3, 3-Position IDC Receptacle

MPN3-640620-3
Active

TE Connectivity MTA-100 receptacle, 3 positions, 0.100" (2.54mm) pitch, IDC termination, tin-plated female socket contacts, locking ramp, free-hanging right-angle mount, bulk.

$0.3300Ref. price · indicative, final on quote
3-640620-3 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-640620-3 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions3
Contact finish thickness80.0µin (2.03µm)

Product details

3-Position IDC Receptacle on 0.100" Pitch

The red housing colour is a factory-coded visual aid for the 3-position variant on the assembly line.

IDC Termination and Wire Fit

The free-hanging mount with a right-angle cable exit lets the harness route flat against the board edge.

No direct replacement or official second-source is listed in the series documentation.

Frequently asked questions

What wire gauge and wire type work with 3-640620-3?

The 3-640620-3 accepts 22 AWG discrete or ribbon cable, terminated via IDC without stripping or crimping.
