TE Connectivity AMP Connectors 3-640620-6

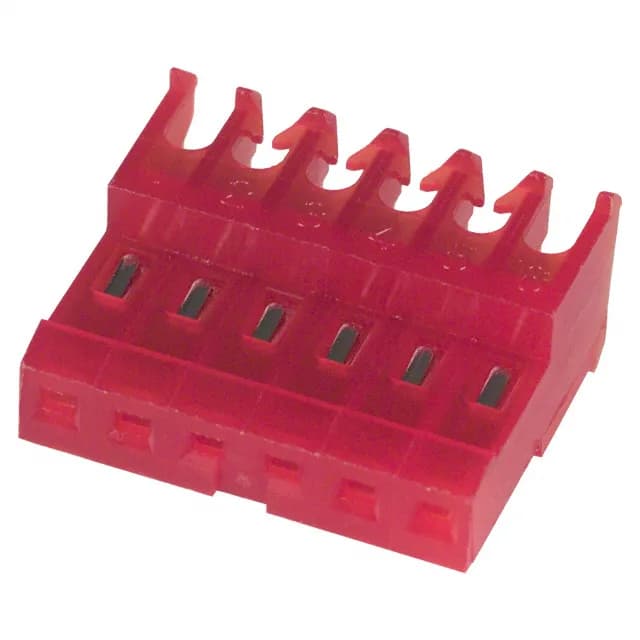

TE MTA-100 3-640620-6 Receptacle, 6 Pos, 0.100" Pitch

MPN 3-640620-6
Active

TE Connectivity MTA-100 receptacle, 3-640620-6, 6 positions, single row, 0.100" (2.54mm) pitch, tin female socket, IDC termination, free-hanging right-angle, locking ramp.

$0.5300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-640620-6 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions6
Contact finish thickness80.0µin (2.03µm)

Product details

MTA-100 6-Position IDC Receptacle

The TE Connectivity 3-640620-6 is a 6-position, single-row receptacle from the MTA-100 series, using a 0.100" (2.54mm) pitch. It terminates discrete or ribbon cable via IDC (insulation displacement) contacts — no wire stripping needed, just a simple press. A locking ramp on the housing holds the mating header in place under vibration, and the red color aids harness identification on the line.

The 0.100" (2.54mm) pitch is the standard MTA-100 spacing — it matches the common 0.100" ribbon cable and the footprint of the mating MTA-100 header. The 22 AWG wire gauge is the specific size the IDC contacts are designed for; using a different gauge risks poor gas-tight connection or contact damage. The locking ramp provides positive retention; you'll hear it click when fully seated, and it resists back-out from cable tug or vibration.
