TE Connectivity AMP Connectors 3-640621-6 — Panel-Mount & In-Line Circular

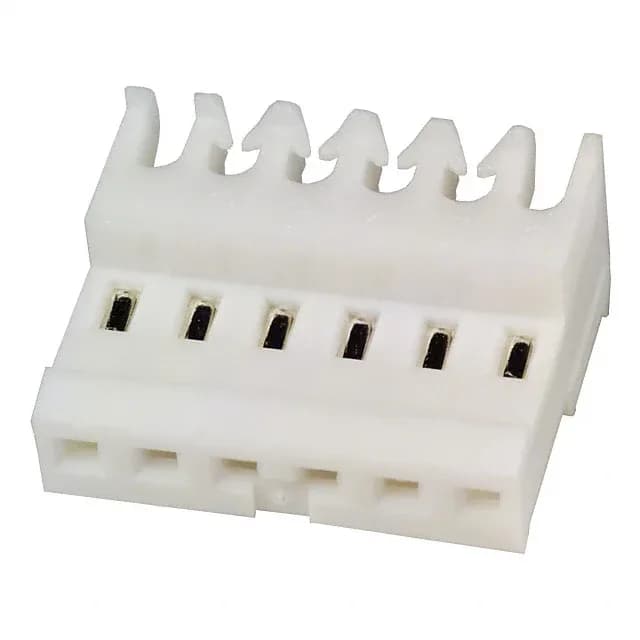

TE MTA-100 3-640621-6, 6-Pos IDC Receptacle, 0.100" Pitch

MPN3-640621-6
Active

TE Connectivity MTA-100 series, 3-640621-6, 6-position IDC receptacle, 0.100" (2.54mm) pitch, tin-plated female socket contacts, free-hanging right-angle mount, locking ramp, 24 AWG discrete or ribbon cable.

$0.5300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-640621-6 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge24 AWG
Cable terminationIDC
ColorWhite
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions6
Contact finish thickness80.0µin (2.03µm)

Product details

The 0.100" (2.54mm) pitch matches the standard MTA-100 header footprint, and the white housing carries a feed-through feature for daisy-chaining multiple connectors on the same cable run.

IDC Termination and Wire Handling

This works for 24 AWG solid or stranded wire, and the feed-through feature allows the cable to pass through the connector body, so you can terminate multiple receptacles along a single ribbon cable without cutting it. The right-angle cable exit keeps the wire bundle parallel to the board edge, which helps in tight enclosures where straight-out cable routing would hit the wall.

Contact Plating and the Real Duty Cycle

Tin is the right choice here because the target application is a low-cycle, permanent-install harness in a controlled environment.

Frequently asked questions

Where can I buy 3-640621-6?

The 3-640621-6 is sourced to order against an RFQ through independent distribution channels. Availability and pricing are confirmed at quote time — submit an RFQ for the quantity you need.

What is the pitch of 3-640621-6?

The pitch is 0.100" (2.54mm), which is the standard MTA-100 spacing and matches the header footprint for this series.

What wire gauge is compatible with 3-640621-6?

This IDC receptacle is designed for 24 AWG discrete or ribbon cable.
