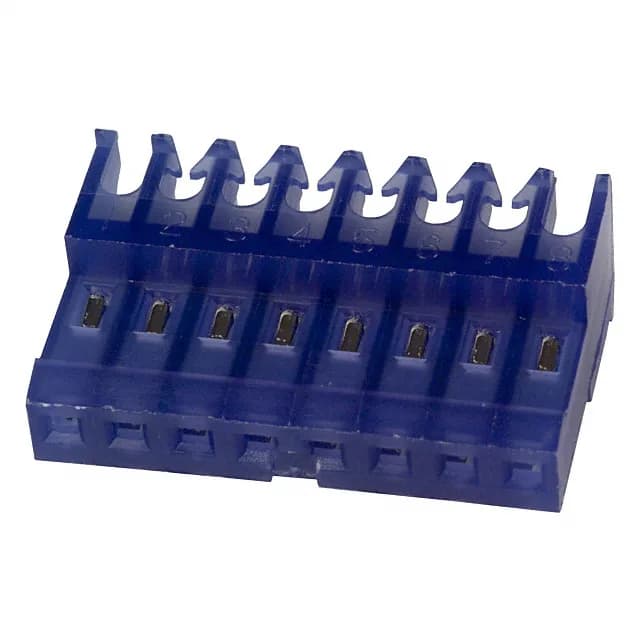

TE Connectivity MTA-100 receptacle, 3-640622-8, 8 positions, 0.100" (2.54mm) pitch, 1 row, IDC termination, 26 AWG, tin contacts, free-hanging or right-angle mount, blue housing.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 26 AWG |
| Cable termination | IDC |
| Color | Blue |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Feed Through |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 8 |
| Contact finish thickness | 80.0µin (2.03µm) |
It uses a 0.100" (2.54mm) pitch — the standard MTA-100 spacing that matches the full range of MTA-100 headers.
It is specified for 26 AWG wire only; the IDC slot geometry is sized for that gauge, so using a different wire size risks an unreliable termination. The feed-through feature allows daisy-chaining multiple receptacles on the same ribbon cable without cutting the run.
The 3-640622-8 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your target quantity.
The 3-640622-8 is designed for 26 AWG discrete or ribbon cable. The IDC slot is sized specifically for that gauge.
