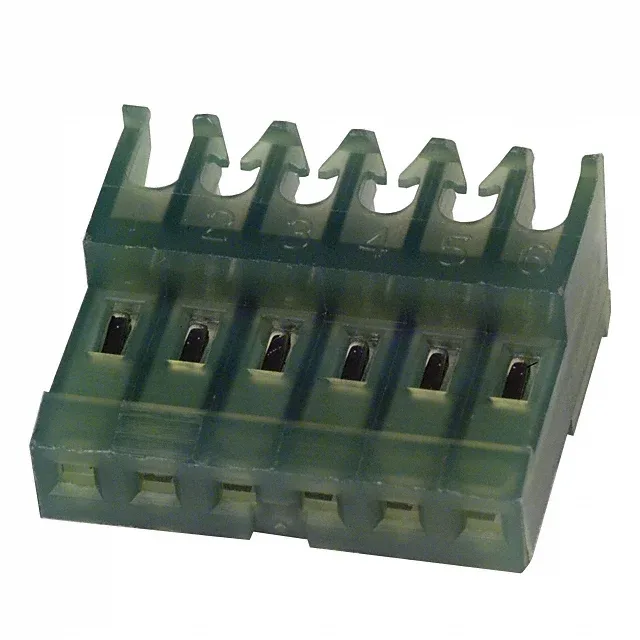

3-640623-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 3-640623-6 Receptacle, 6 Pos, 0.100" IDC

MPN3-640623-6
Active

TE Connectivity MTA-100 receptacle, 3-640623-6, 6 positions, 0.100" (2.54mm) pitch, IDC termination, 28 AWG, tin contacts, locking ramp, free-hanging right-angle, green.

$0.5400Ref. price · indicative, final on quote
3-640623-6 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-640623-6 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge28 AWG
Cable terminationIDC
ColorGreen
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions6
Contact finish thickness80.0µin (2.03µm)

Product details

IDC Receptacle for 28 AWG Harness Assembly

The TE Connectivity MTA-100 3-640623-6 is a 6-position single-row receptacle that terminates discrete or ribbon cable via IDC — no stripping, no crimp.

Works with discrete or ribbon cable; the feed-through feature lets you daisy-chain multiple receptacles on the same cable run without cutting the wire. The free-hanging, right-angle mounting gives you a low-profile exit off the board edge.

The green housing colour helps with visual sorting on the assembly line.

Frequently asked questions

What wire gauge works with 3-640623-6?

The IDC termination is specified for 28 AWG discrete or ribbon cable.

Is 3-640623-6 RoHS compliant?

Yes, it is listed as RoHS Compliant.
