TE Connectivity AMP Connectors 3-641190-3

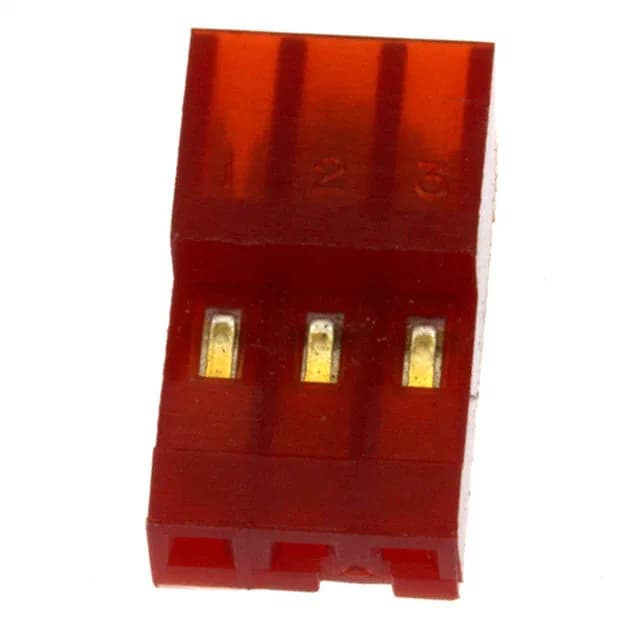

TE MTA-100 3-641190-3, 3-Pos IDC Receptacle, 0.100" Pitch

MPN 3-641190-3
Active

TE Connectivity MTA-100 IDC receptacle, 3 positions, 0.100" (2.54mm) pitch, 22 AWG, gold contact finish, closed end, locking ramp, free-hanging right-angle mount.

$1.1600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3-641190-3 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishGold
Rows1
Positions3
Contact finish thickness15.0µin (0.38µm)

Product details

3-Position IDC Receptacle for Discrete or Ribbon Cable

The TE Connectivity MTA-100 3-641190-3 is a 3-position IDC receptacle designed for 22 AWG discrete or ribbon cable. It uses a 0.100" (2.54mm) pitch, matching the standard MTA-100 header footprint. The closed-end housing prevents the wire from pushing past the IDC slot, so each conductor seats fully in its contact tine on the first press. A locking ramp on the housing secures the mate with the matching header, giving a positive hold in moderate-vibration environments like appliance or HVAC control panels.

Gold Plating and Termination

The IDC termination pierces the insulation and grips the conductor in one stroke — no wire stripping, no crimp tool.

MPN
3-641190-3
