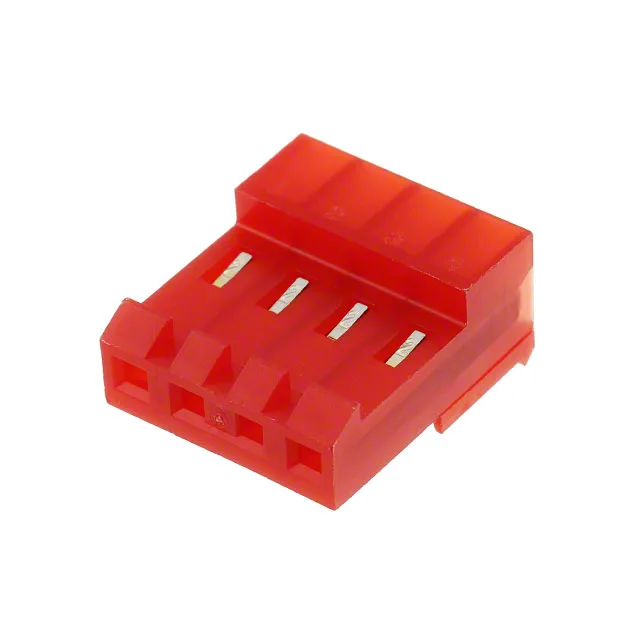

3-641219-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-156 3-641219-4 Receptacle, 4 Pos, IDC, Gold

MPN3-641219-4
Active

TE Connectivity MTA-156 receptacle, 3-641219-4, 4 positions, 1 row, 0.156" (3.96mm) pitch, IDC termination, 22 AWG, gold contacts, locking ramp, closed end, free-hanging.

$2.3900Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

3-641219-4 Technical Specifications
ParameterValue
SeriesMTA-156
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.156\" (3.96mm)
PackageBulk
FeaturesClosed End
Contact finishGold
Rows1
Positions4
Contact finish thickness3.00µin (0.076µm)

Product details

4-Position, 0.156" Pitch IDC Receptacle

The TE Connectivity MTA-156 3-641219-4 is a 4-position, single-row receptacle designed for mass-termination of discrete or ribbon cable. Its 0.156" (3.96mm) pitch is the standard spacing for this series, matching the footprint of the corresponding MTA-156 headers. The closed-end housing prevents the cable from pushing through, giving a positive stop during assembly. Gold-plated contacts (3.00µin) are specified for the female socket side, which handles the mating interface with the header pins.

IDC Termination and Locking Ramp

Cable termination is IDC, sized for 22 AWG wire.

Frequently asked questions

Where can I buy 3-641219-4 available via RFQ confirmation?

Availability is confirmed at the time of quote — submit an RFQ for current pricing and lead time.

What is the compatible header for 3-641219-4?

This receptacle mates with the matching MTA-156 header of the same 0.156" pitch and 4-position count. The locking ramp interface requires the header to have the corresponding latch feature.
