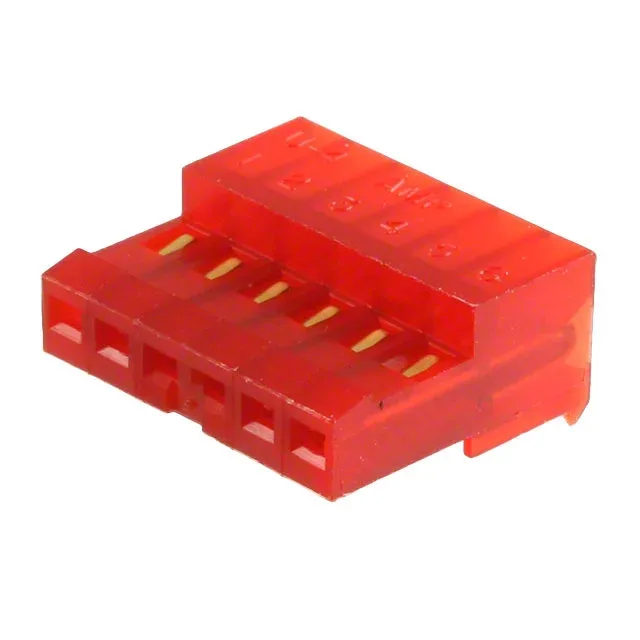

3-641237-6 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 3-641237-6, 6-Pos IDC Receptacle, 0.100" Pitch

MPN3-641237-6
Active

TE Connectivity MTA-100 receptacle, 3-641237-6, 6 positions, 1 row, 0.100" (2.54 mm) pitch, IDC termination, gold-plated female socket, locking ramp, free-hanging or right-angle mount.

$3.3500Ref. price · indicative, final on quote
3-641237-6 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

3-641237-6 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishGold
Rows1
Positions6
Contact finish thickness30.0µin (0.76µm)

Product details

6-Position IDC Receptacle for Discrete or Ribbon Cable

The TE Connectivity MTA-100 3-641237-6 is a 6-position receptacle that terminates 22 AWG discrete or ribbon cable via IDC contacts — no stripping, no crimping, just a one-step press.

The 3-641237-6 is a standard 6-position, single-row receptacle in the MTA-100 series. Compared to the 4-position 1-1703095-1 (which uses a 0.197" pitch and latch-lock fastening), this part stays at the 0.100" pitch common to the MTA-100 line, so it shares the same header footprint as the rest of the family. The 17-position 1-226733-4 is a dual-row ribbon-cable-only receptacle with a detent lock — a different board layout and a different cable routing.

Frequently asked questions

Is 3-641237-6 RoHS compliant?

Yes, the listing shows RoHS Compliant status.
